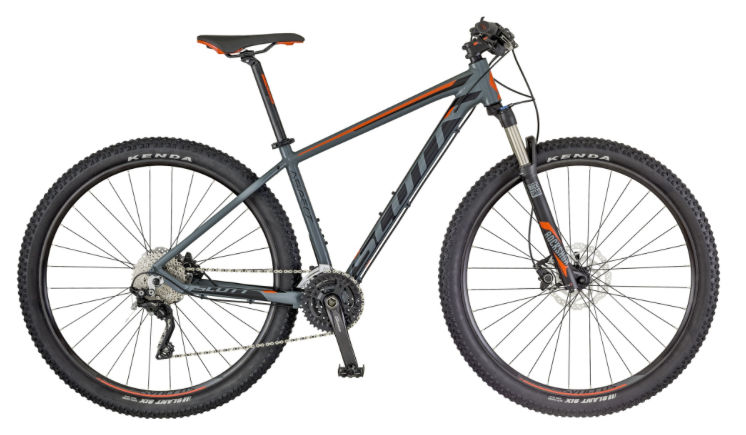

2018 Scott Aspect 27.5 geometry
Full frame geometry for the 2018 Scott Aspect 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 579 | 398 | 73 | 69 | 100 | 575 | 395 | 742 | 44 | 435 | 1083 |
| XS | 579 | 378 | 73 | 69 | 100 | 555 | 355 | 720 | 44 | 435 | 1063 |
| M | 588 | 405 | 73 | 69 | 110 | 585 | 440 | 770 | 44 | 435 | 1094 |
| L | 602 | 426 | 73 | 69 | 125 | 610 | 480 | 797 | 44 | 435 | 1120 |
| XL | 616 | 447 | 73 | 69 | 140 | 635 | 530 | 829 | 44 | 435 | 1146 |
All measurements in millimetres unless marked (°) for angles.
