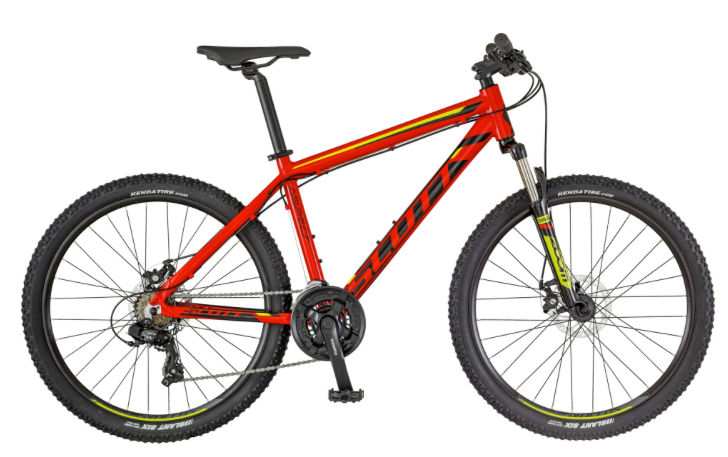

2018 Scott Aspect 26 geometry
Full frame geometry for the 2018 Scott Aspect 26, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 559 | 390 | 74.5 | 69.5 | 105 | 545 | 350 | 709 | 32 | 427 | 1055 |
| S | 571 | 391 | 74 | 70 | 115 | 555 | 390 | 739 | 32 | 427 | 1055 |
| M | 587 | 396 | 73.5 | 70.5 | 130 | 570 | 440 | 776 | 32 | 427 | 1061 |
| L | 601 | 407 | 73.5 | 70.5 | 145 | 585 | 500 | 815 | 32 | 427 | 1076 |
| XL | 618 | 411 | 73 | 71 | 160 | 600 | 570 | 861 | 32 | 427 | 1081 |
All measurements in millimetres unless marked (°) for angles.
