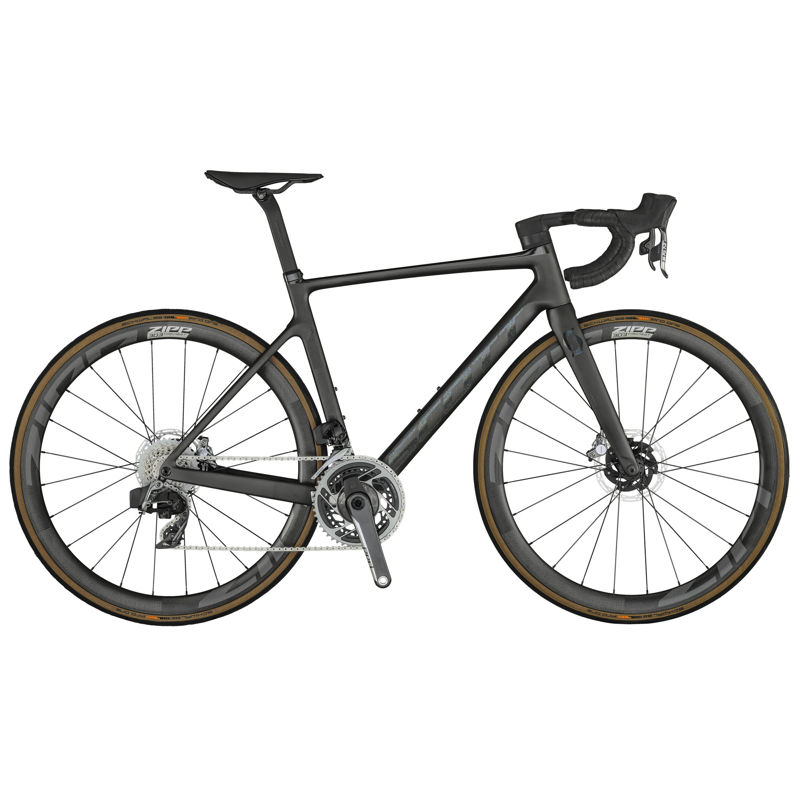

2021 Scott Addict RC geometry
Full frame geometry for the 2021 Scott Addict RC, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS/47 | 504 | 380 | 74.5 | 70.5 | 97 | 520 | 470 | 720 | 70 | 410 | 987.5 |
| XS/49 | 511 | 388 | 74.5 | 71 | 102 | 530 | 490 | 740 | 70 | 410 | 994 |
| S/52 | 526.5 | 390 | 74 | 72 | 115 | 540 | 520 | 755 | 70 | 410 | 991 |
| M/54 | 548 | 390 | 73.6 | 72.5 | 135 | 550 | 540 | 778 | 70 | 410 | 992 |
| L/56 | 568.5 | 395 | 73.3 | 73 | 155 | 565 | 560 | 798 | 70 | 410 | 1000 |
| XL/58 | 588 | 400 | 73 | 73.3 | 175 | 580 | 580 | 818 | 70 | 410 | 1008 |
| XXL/61 | 606 | 410 | 72.5 | 73.3 | 193 | 600 | 610 | 838 | 70 | 410 | 23 |
All measurements in millimetres unless marked (°) for angles.
