2025 Scott · RD

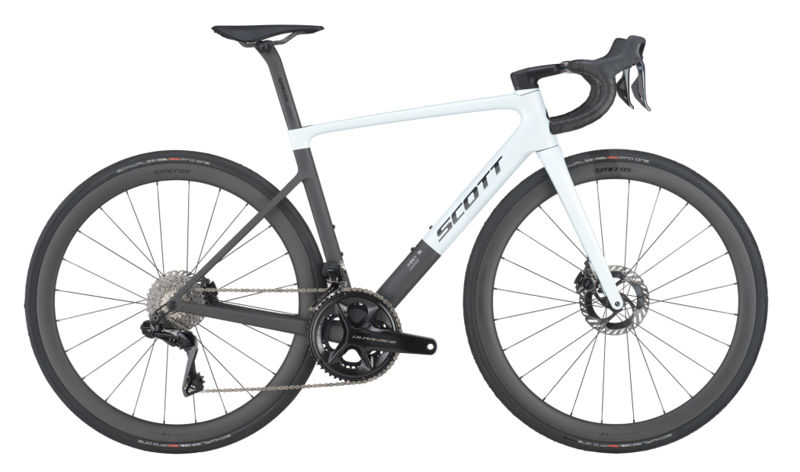

2025 Scott Addict RC Pro geometry
Full frame geometry for the 2025 Scott Addict RC Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XXS/47 | 501.3 | 379.4 | 74.5 | 71.3 | 90 | 519 | 422.5 | 725 | 410 | 47 |
| XS/49 | 512.5 | 386.3 | 74.5 | 71.8 | 100 | 528 | 442.5 | 740 | 410 | 47 |
| S/52 | 525.5 | 391.6 | 74 | 72.3 | 113 | 542 | 462.1 | 758 | 410 | 47 |
| M/54 | 543.3 | 395.2 | 73.6 | 72.8 | 130 | 555 | 482 | 778 | 410 | 44 |
| L/56 | 564.5 | 402.6 | 73.3 | 73.4 | 150 | 572 | 502.2 | 799 | 410 | 44 |
| XL/58 | 584.3 | 406.1 | 72.8 | 73.6 | 170 | 586 | 522.3 | 820 | 410 | 44 |
| XXL/61 | 604.2 | 411.3 | 72.5 | 73.8 | 190 | 602 | 542.4 | 840 | 410 | 44 |
All measurements in millimetres unless marked (°) for angles.
