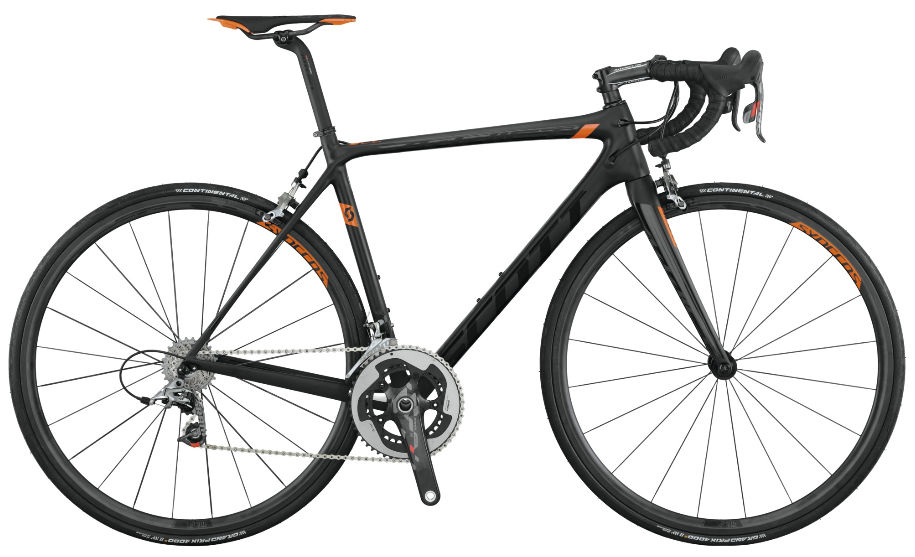

2014 Scott Addict RC MKI geometry
Full frame geometry for the 2014 Scott Addict RC MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 503 | 371 | 74.5 | 70.5 | 100 | 510 | 455 | 722 | 67 | 572 | 405 | 972 | 43 | 73 |
| XS | 509 | 379 | 74.5 | 71 | 105 | 520 | 475 | 735 | 67 | 578 | 405 | 978 | 43 | 70 |
| S | 527 | 384 | 74 | 72 | 120 | 535 | 505 | 757 | 67 | 580 | 405 | 980 | 43 | 63 |
| M | 548 | 389 | 73.6 | 72.5 | 140 | 550 | 525 | 777 | 67 | 587 | 405 | 987 | 43 | 60 |
| L | 568 | 395 | 73.3 | 73 | 160 | 565 | 545 | 797 | 67 | 594 | 405 | 994 | 43 | 57 |
| XL | 588 | 400 | 73 | 73.3 | 180 | 580 | 565 | 816 | 67 | 603 | 405 | 1003 | 43 | 55 |
| XXL | 608 | 403 | 72.5 | 73.3 | 200 | 595 | 596 | 839 | 67 | 612 | 405 | 1012 | 43 | 55 |
All measurements in millimetres unless marked (°) for angles.
