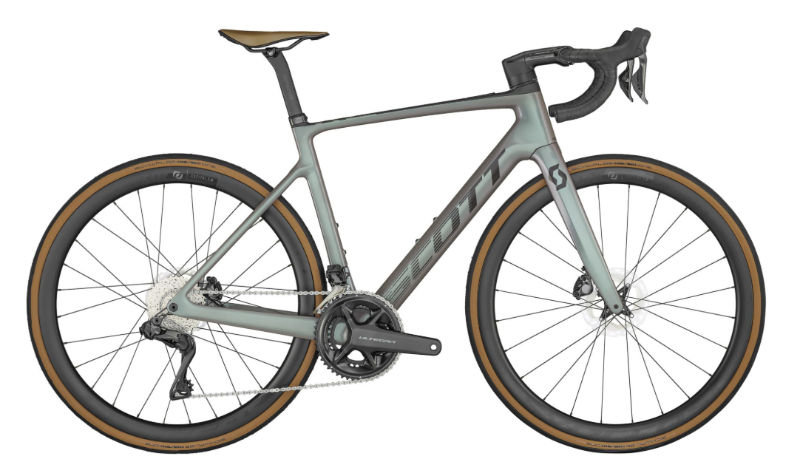

2025 Scott Addict RC eRIDE geometry
Full frame geometry for the 2025 Scott Addict RC eRIDE, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS/49 | 529.1 | 373.2 | 75 | 71 | 105 | 515 | 490 | 752 | 70 | 422 | -70 |
| S/52 | 551.6 | 377 | 74.5 | 72 | 125 | 530 | 520 | 776 | 70 | 422 | -70 |
| M/54 | 572.4 | 380.9 | 74 | 72.5 | 145 | 545 | 540 | 799 | 70 | 422 | -70 |
| L/56 | 593.3 | 384.3 | 73.5 | 73 | 165 | 560 | 560 | 822 | 70 | 422 | -70 |
| XL/58 | 613.6 | 388.6 | 73.1 | 73.3 | 185 | 575 | 580 | 843 | 70 | 422 | -70 |
All measurements in millimetres unless marked (°) for angles.
