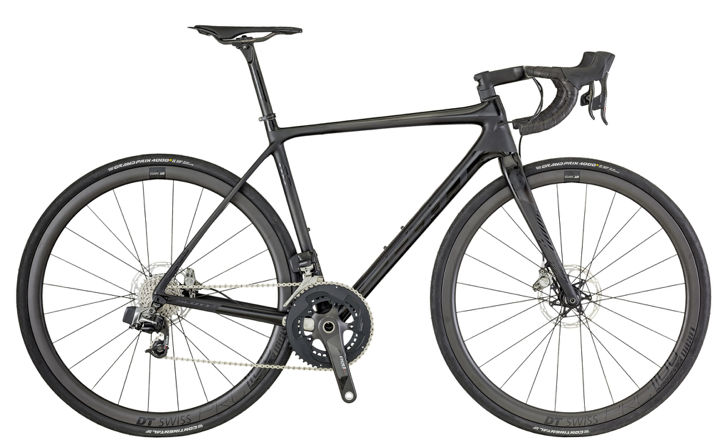

2018 Scott Addict RC Disc geometry
Full frame geometry for the 2018 Scott Addict RC Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS/47 | 503 | 371 | 74.5 | 70.5 | 100 | 510 | 455 | 722 | 67 | 405 | 972 |
| XS/49 | 509 | 379 | 74.5 | 71 | 105 | 520 | 475 | 735 | 67 | 405 | 978 |
| S/52 | 527 | 384 | 74 | 72 | 120 | 535 | 505 | 757 | 67 | 405 | 980 |
| M/54 | 548 | 389 | 73.6 | 72.5 | 140 | 550 | 525 | 777 | 67 | 405 | 987 |
| L/56 | 568 | 394 | 73.3 | 73 | 160 | 565 | 545 | 797 | 67 | 405 | 994 |
| XL/58 | 588 | 400 | 73 | 73.3 | 180 | 580 | 565 | 816 | 67 | 405 | 1003 |
| XXL/61 | 608 | 403 | 72.5 | 73.3 | 200 | 595 | 596 | 839 | 67 | 405 | 1012 |
All measurements in millimetres unless marked (°) for angles.
