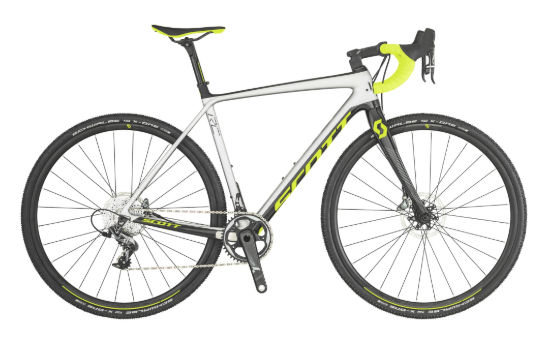

2018 Scott Addict CX RC geometry
Full frame geometry for the 2018 Scott Addict CX RC, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS/49 | 522 | 360 | 74.5 | 70 | 95 | 505 | 490 | 750 | 68 | 422 | 984 |
| S/52 | 546 | 369 | 74 | 70 | 120 | 525 | 520 | 776 | 68 | 422 | 1002 |
| M/54 | 564 | 378 | 73.5 | 71 | 140 | 545 | 540 | 796 | 68 | 422 | 1017 |
| L/56 | 583 | 390 | 73 | 71 | 160 | 568 | 560 | 814 | 68 | 422 | 1043 |
| XL/58 | 602 | 405 | 73 | 71 | 180 | 590 | 580 | 832 | 68 | 422 | 1056 |
All measurements in millimetres unless marked (°) for angles.
