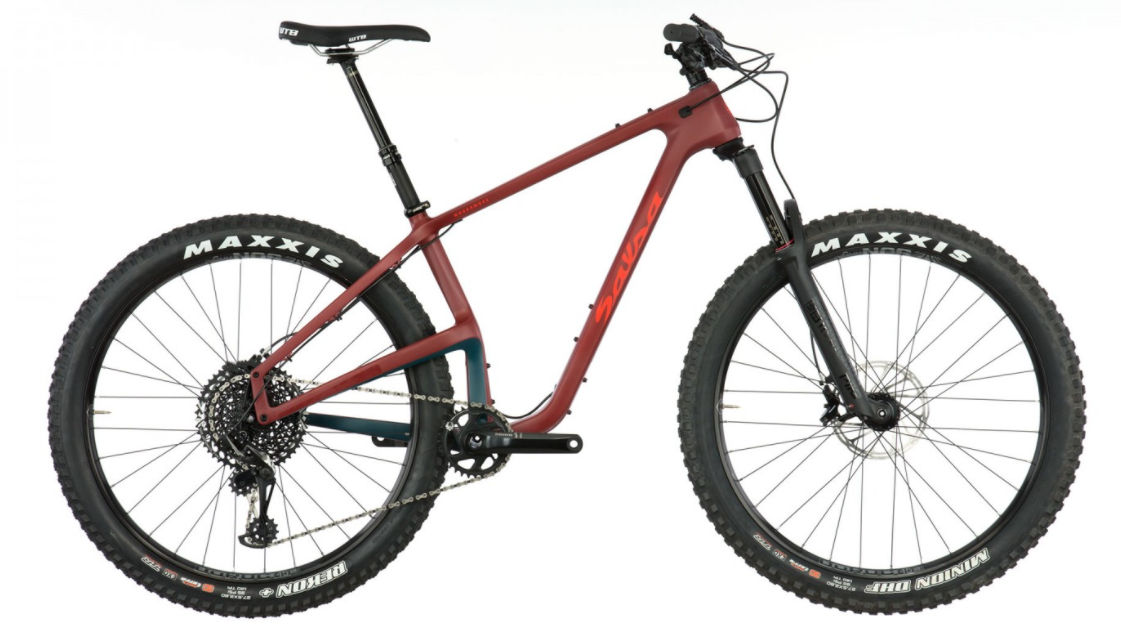

2018 Salsa Woodsmoke 27.5 geometry
Full frame geometry for the 2018 Salsa Woodsmoke 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 601 | 396 | 73.8 | 68.3 | 100 | 569 | 356 | 686 | 63 | 46 |
| S | 602 | 416 | 73.8 | 68.3 | 100 | 589 | 381 | 706 | 63 | 46 |
| M | 611 | 433 | 73.8 | 68.3 | 110 | 609 | 432 | 746 | 63 | 46 |
| L | 619 | 460 | 73.8 | 68.3 | 120 | 639 | 483 | 775 | 63 | 46 |
| XL | 629 | 487 | 73.8 | 68.3 | 130 | 669 | 533 | 804 | 63 | 46 |
All measurements in millimetres unless marked (°) for angles.
