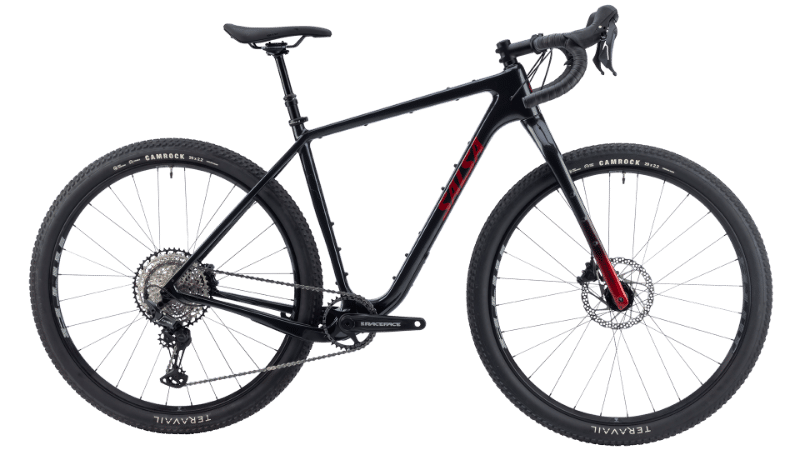

2026 Salsa Cutthroat C geometry
Full frame geometry for the 2026 Salsa Cutthroat C, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 585 | 357 | 74.5 | 69 | 90 | 520 | 356 | 700 | 70 | 445 | 1050 | 51 |
| 54 | 592 | 372 | 74.3 | 69 | 98 | 540 | 419 | 742 | 70 | 445 | 1066 | 51 |
| 56 | 620 | 385 | 74.3 | 69 | 127 | 560 | 508 | 811 | 70 | 445 | 1091 | 51 |
| 58 | 645 | 394 | 74 | 69 | 154 | 580 | 559 | 852 | 70 | 445 | 1110 | 51 |
| 60 | 664 | 406 | 73.8 | 69 | 175 | 600 | 584 | 874 | 70 | 445 | 1129 | 51 |
All measurements in millimetres unless marked (°) for angles.
