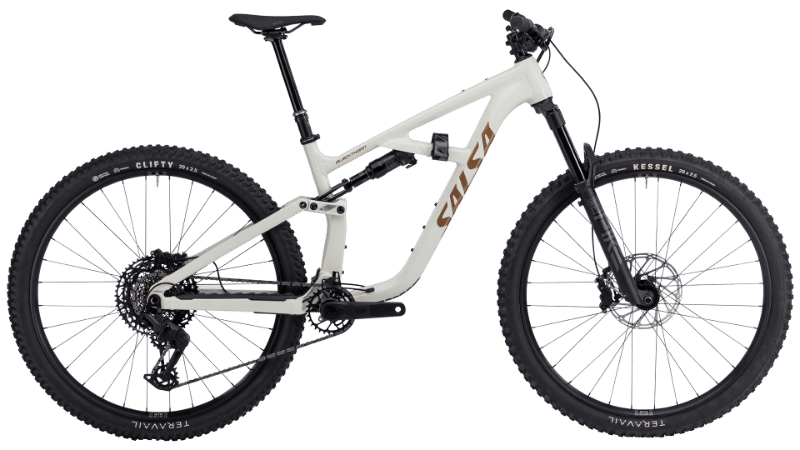

2026 Salsa Blackthorn 125 geometry
Full frame geometry for the 2026 Salsa Blackthorn 125, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 602.4 | 462 | 78.3 | 64.7 | 100 | 587 | 405 | 735.3 | 32 | 432 | 1210 | 43 |
| MD | 611.2 | 482 | 78.2 | 64.7 | 110 | 609 | 430 | 735.7 | 32 | 432 | 1234 | 43 |
| LG | 620 | 502 | 78.2 | 64.7 | 120 | 631 | 455 | 736 | 32 | 432 | 1258 | 43 |
| XL | 628.7 | 521 | 78.2 | 64.7 | 130 | 653 | 480 | 736.3 | 32 | 432 | 1283 | 43 |
All measurements in millimetres unless marked (°) for angles.
