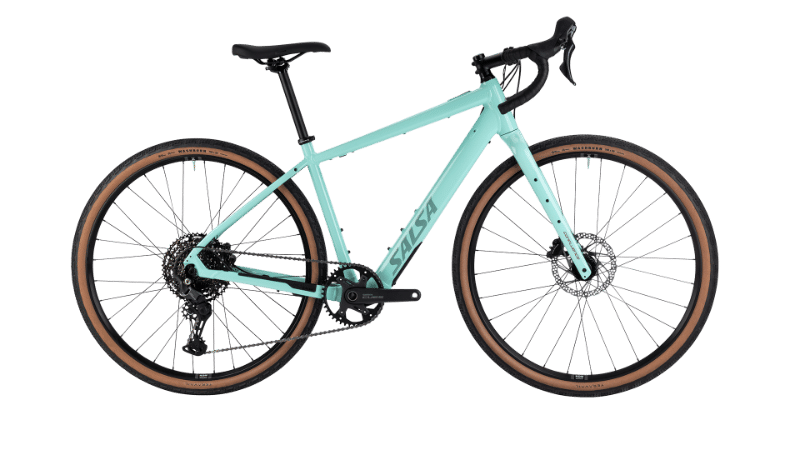

2026 Salsa Confluence geometry
Full frame geometry for the 2026 Salsa Confluence, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 523.9 | 371.4 | 76 | 68.5 | 90 | 502 | 345 | 634 | 70 | 440 | 1039.4 | 51 |
| 51 | 537.8 | 372.9 | 75 | 68.5 | 105 | 517 | 380 | 667 | 70 | 440 | 1046.4 | 51 |
| 53 | 561.1 | 369.1 | 74 | 68.5 | 130 | 530 | 410 | 698 | 70 | 440 | 1051.8 | 51 |
| 55 | 579.7 | 372.8 | 73 | 68.5 | 150 | 550 | 450 | 733 | 70 | 440 | 1062.8 | 51 |
| 57 | 607.6 | 384.2 | 73 | 68.5 | 180 | 570 | 490 | 769 | 70 | 440 | 1085.2 | 51 |
| 60 | 635.5 | 405.7 | 73 | 68.5 | 210 | 600 | 520 | 797 | 70 | 440 | 1117.7 | 51 |
All measurements in millimetres unless marked (°) for angles.
