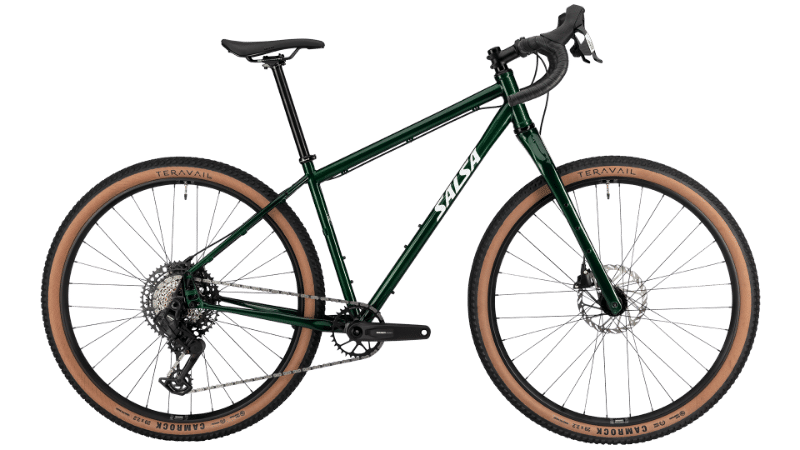

2026 Salsa Fargo Steel geometry
Full frame geometry for the 2026 Salsa Fargo Steel, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 584 | 352 | 74 | 68.5 | 90 | 520 | 355.6 | 690 | 70 | 462 | 1067 | 51 |
| S | 605 | 366 | 74 | 69 | 110 | 540 | 406.4 | 732 | 70 | 462 | 1083 | 51 |
| M | 633 | 371 | 73 | 69 | 140 | 565 | 457.2 | 778 | 70 | 462 | 1099 | 51 |
| L | 661 | 388 | 73 | 69 | 170 | 590 | 508 | 821 | 70 | 462 | 1126 | 51 |
| XL | 680 | 412 | 73 | 69 | 190 | 620 | 558.8 | 859 | 70 | 462 | 1158 | 51 |
All measurements in millimetres unless marked (°) for angles.
