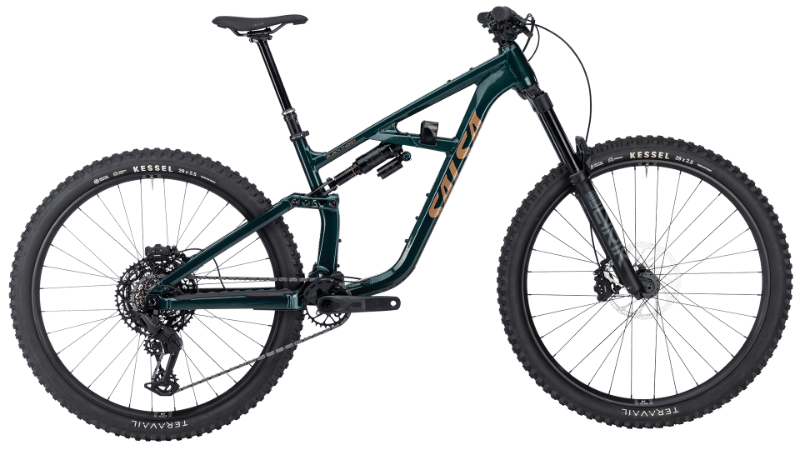

2026 Salsa Blackthorn 145 geometry
Full frame geometry for the 2026 Salsa Blackthorn 145, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 612 | 452 | 77.4 | 63.9 | 100 | 589 | 405 | 746 | 25 | 432 | 1219 | 44 |
| MD | 621 | 472 | 77.4 | 63.9 | 110 | 611 | 430 | 746 | 25 | 432 | 1243 | 44 |
| LG | 630 | 492 | 77.4 | 63.9 | 120 | 633 | 455 | 747 | 25 | 432 | 1268 | 44 |
| XL | 639 | 512 | 77.4 | 63.9 | 130 | 655 | 480 | 747 | 25 | 432 | 1292 | 44 |
All measurements in millimetres unless marked (°) for angles.
