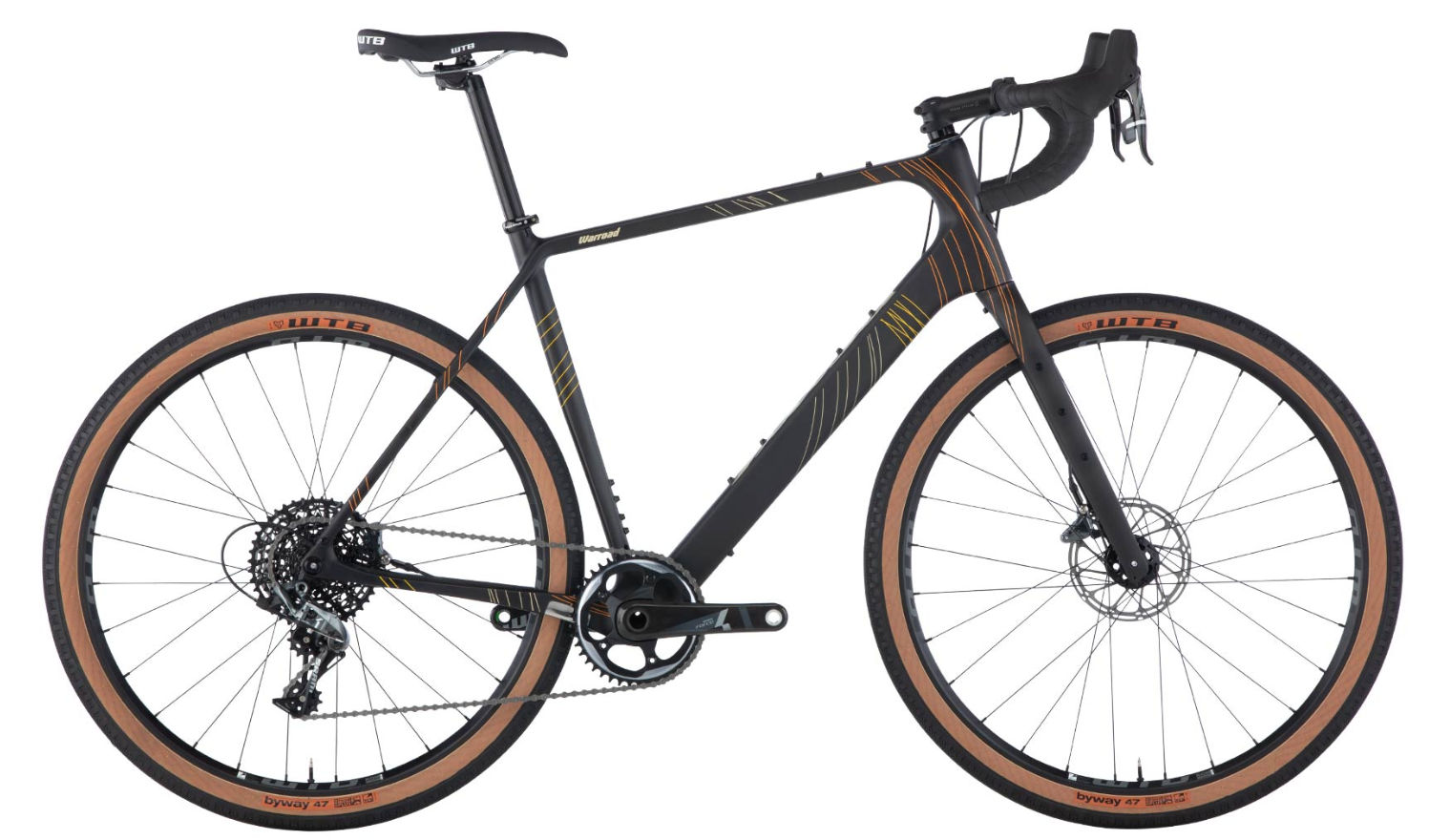

2019 Salsa Warroad geometry
Full frame geometry for the 2019 Salsa Warroad, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 507 | 363 | 75 | 70.5 | 92 | 499 | 400 | 665 | 72 | 415 | 980 | 51 |
| 52.5 | 547 | 368 | 74 | 71 | 132 | 525 | 450 | 718 | 72 | 415 | 994 | 51 |
| 54.5 | 566 | 372 | 73 | 71 | 152 | 545 | 485 | 747 | 72 | 415 | 1005 | 51 |
| 56 | 584 | 381 | 73 | 71 | 172 | 560 | 520 | 761 | 72 | 415 | 1010 | 51 |
| 57.5 | 604 | 391 | 73 | 71 | 192 | 575 | 530 | 788 | 72 | 415 | 1036 | 51 |
| 59 | 622 | 400 | 73 | 71 | 212 | 590 | 555 | 810 | 72 | 415 | 1052 | 51 |
| 61 | 641 | 408 | 72.5 | 71 | 232 | 610 | 580 | 832 | 72 | 415 | 1066 | 51 |
All measurements in millimetres unless marked (°) for angles.
