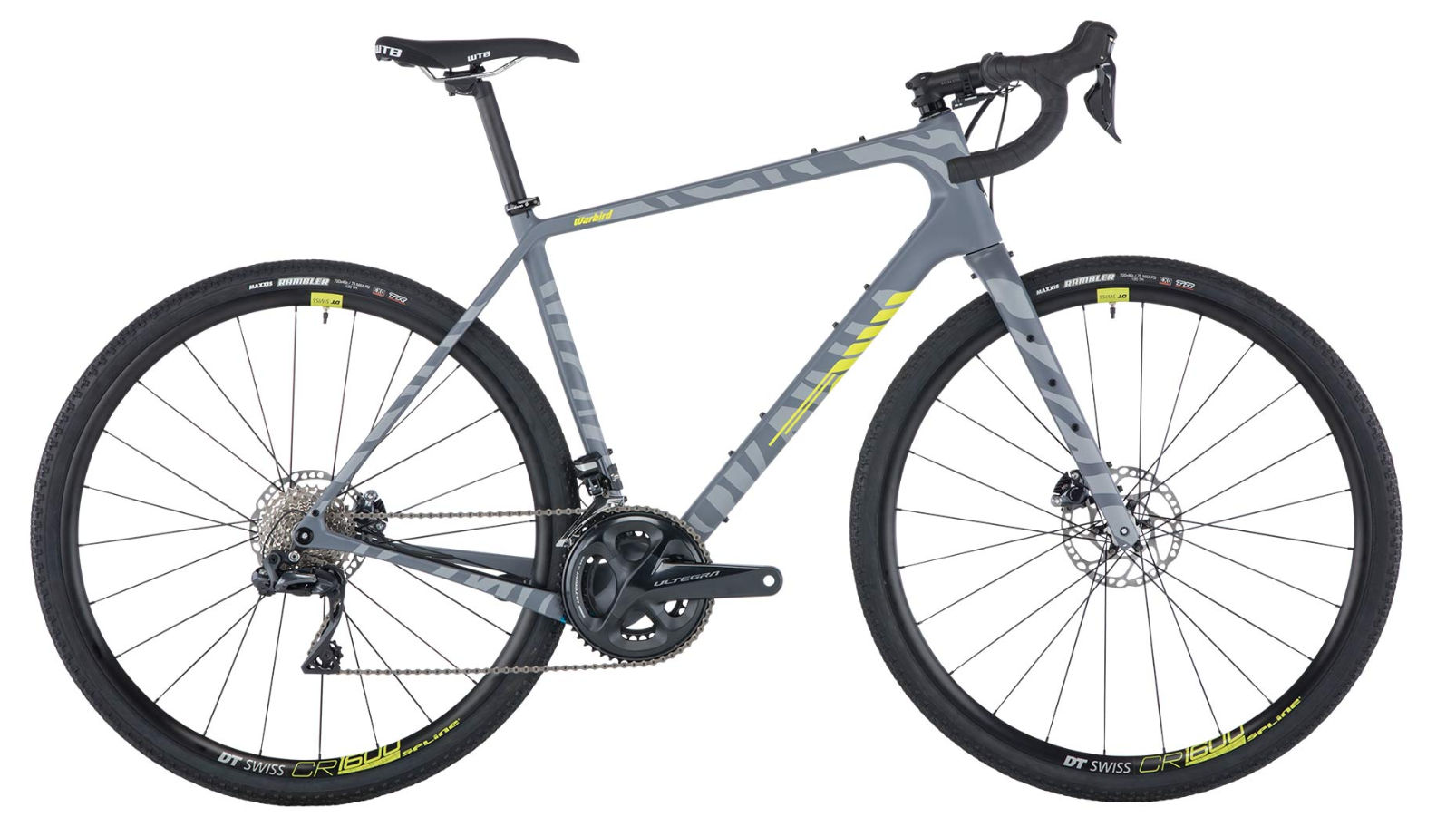

2019 Salsa Warbird MK III geometry
Full frame geometry for the 2019 Salsa Warbird MK III, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 518 | 360 | 75 | 71 | 90 | 499 | 390 | 670 | 70 | 430 | 996 | 50 |
| 52.5 | 547 | 368 | 74 | 70.8 | 120 | 525 | 440 | 714 | 70 | 430 | 1012 | 50 |
| 54.5 | 566 | 372 | 73 | 70.8 | 140 | 545 | 475 | 744 | 70 | 430 | 1022 | 50 |
| 56 | 585 | 381 | 73 | 70.8 | 160 | 560 | 510 | 770 | 70 | 430 | 1038 | 50 |
| 57.5 | 604 | 390 | 73 | 70.8 | 180 | 575 | 520 | 786 | 70 | 430 | 1054 | 50 |
| 59 | 623 | 400 | 73 | 70.8 | 200 | 590 | 545 | 808 | 70 | 430 | 1070 | 50 |
| 61 | 642 | 408 | 72.5 | 70.8 | 220 | 610 | 570 | 831 | 70 | 430 | 1085 | 50 |
All measurements in millimetres unless marked (°) for angles.
