2018 Salsa · G

2018 Salsa Warbird Carbon geometry

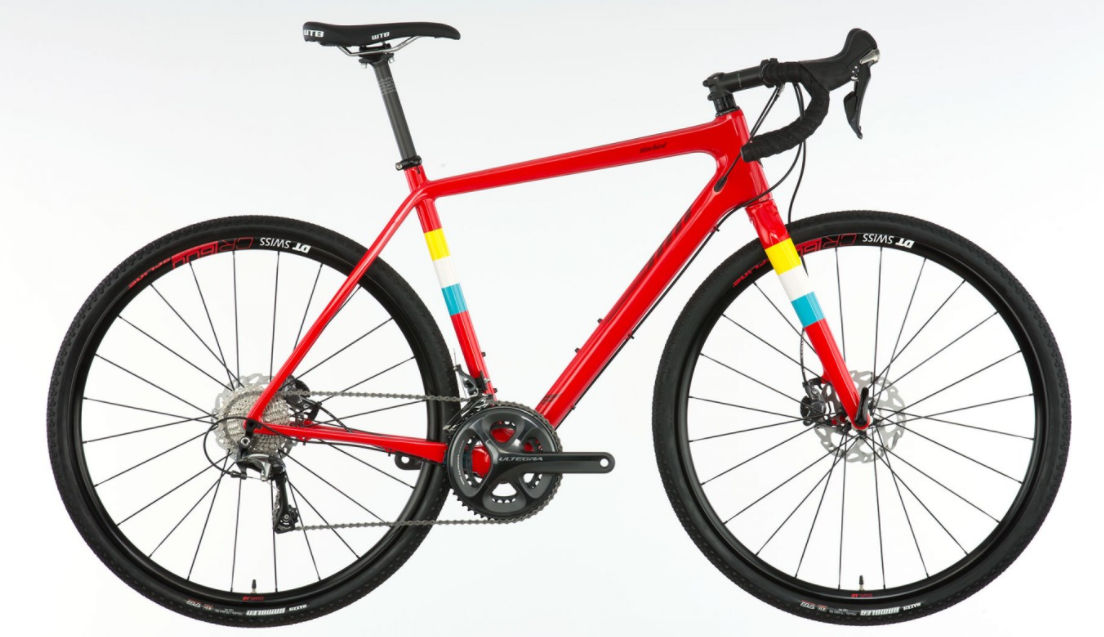

Name: 2018 Salsa Warbird Carbon
Brand: Salsa

Full frame geometry for the 2018 Salsa Warbird Carbon, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)
51	528	369	74.5	70	100	515	455	716	70	430	1007	45
53	548	372	73.5	70.5	120	535	495	749	70	430	1014	45
55	567	377	73	70.5	140	550	520	772	70	430	1025	45
56	590	385	72	72	160	565	540	792	70	430	1031	45
58	616	386	72.5	72	185	580	575	824	70	430	1035	45
60	640	392	72	72	210	600	605	850	70	430	1049	45

All measurements in millimetres unless marked (°) for angles.
