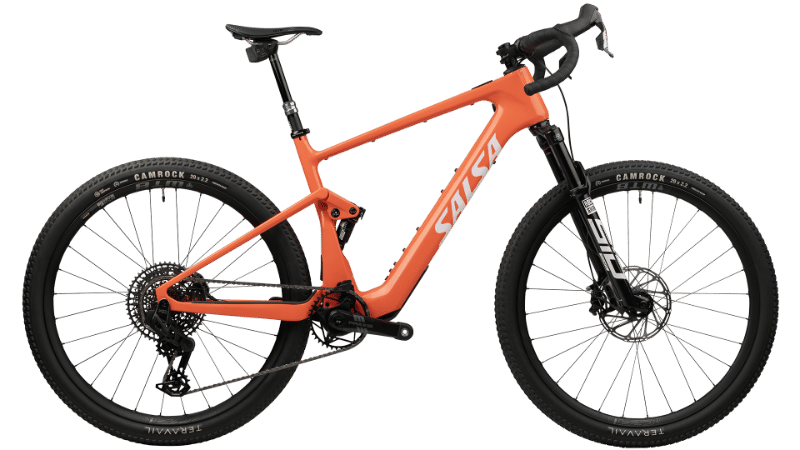

2026 Salsa Wanderosa C geometry
Full frame geometry for the 2026 Salsa Wanderosa C, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| X-Small | 595.4 | 380.3 | 75.1 | 65.3 | 100 | 538.2 | 430 | 725.6 | 37.6 | 440.6 | 1123.7 | 44 |
| Small | 599.9 | 404.1 | 75.1 | 65.3 | 105 | 563.3 | 460 | 749.2 | 37.6 | 440.6 | 1149.7 | 44 |
| Medium | 618.1 | 424.4 | 75.1 | 65.3 | 125 | 588.4 | 490 | 776.3 | 37.6 | 440.6 | 1178.3 | 44 |
| Large | 636.3 | 444.6 | 75.1 | 65.3 | 145 | 613.4 | 520 | 803.1 | 37.6 | 440.6 | 1206.8 | 44 |
| X-Large | 654.5 | 464.9 | 75.1 | 65.3 | 165 | 638.5 | 550 | 829.7 | 37.6 | 440.6 | 1235.5 | 44 |
All measurements in millimetres unless marked (°) for angles.
