2018 Salsa · G

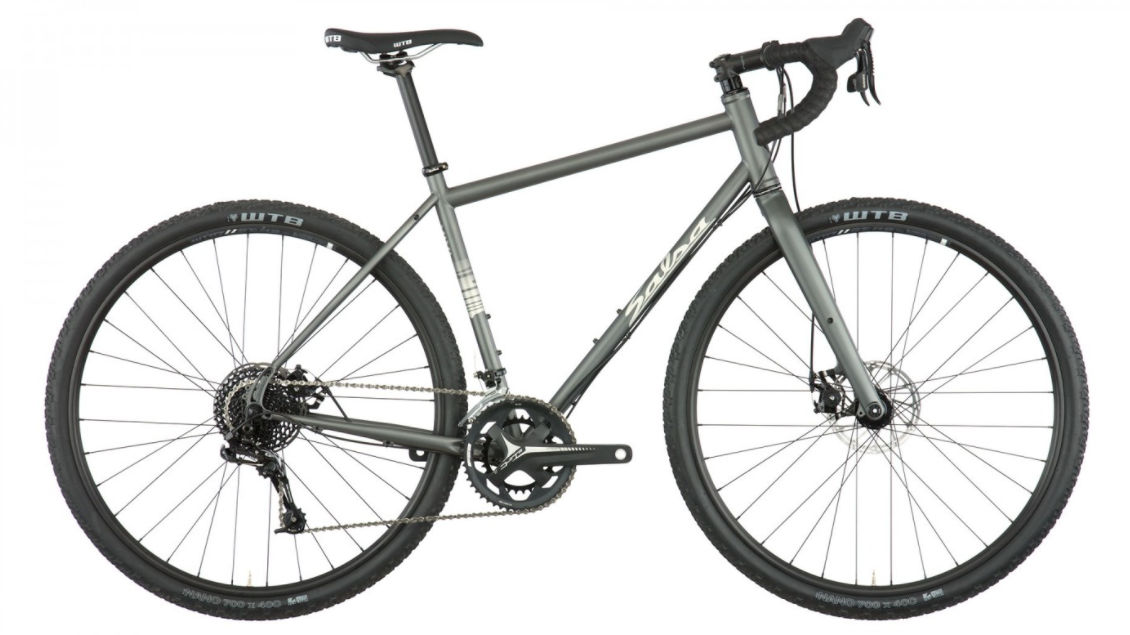

2018 Salsa Vaya MKII geometry
Full frame geometry for the 2018 Salsa Vaya MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49.5 | 543 | 355 | 75.5 | 70.2 | 100 | 495 | 380 | 660 | 75 | 450 | 1019 | 50 |
| 52 | 547 | 368 | 74.5 | 71.5 | 100 | 520 | 450 | 714 | 75 | 450 | 1023 | 50 |
| 54 | 590 | 365 | 73.5 | 71.5 | 145 | 540 | 470 | 742 | 75 | 450 | 1034 | 50 |
| 55 | 609 | 364 | 73 | 71.5 | 165 | 550 | 510 | 776 | 75 | 450 | 1039 | 50 |
| 57 | 628 | 372 | 72.5 | 71.5 | — | 570 | 530 | 796 | 75 | 450 | 1054 | 50 |
| 59.5 | 647 | 385 | 72 | 71.5 | 205 | 595 | 560 | 821 | 75 | 450 | 1073 | 50 |
All measurements in millimetres unless marked (°) for angles.
