2025 Salsa · EG

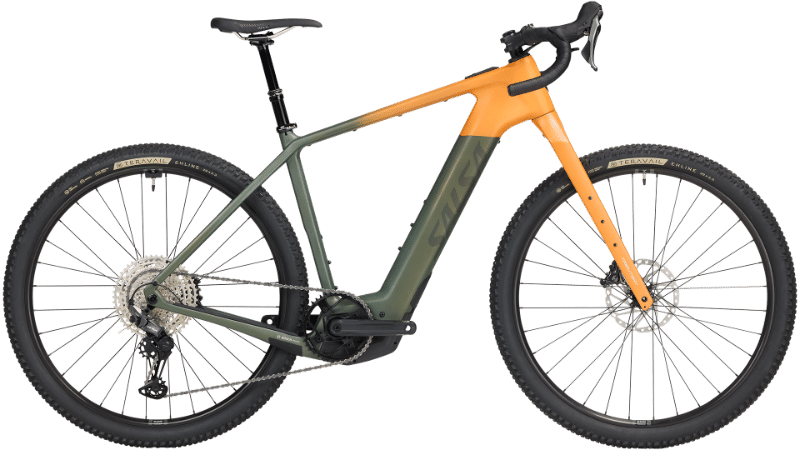

2025 Salsa Tributary C geometry
Full frame geometry for the 2025 Salsa Tributary C, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 601.8 | 398.7 | 75 | 67 | 100 | 560 | 70 | 445 | 1119.4 | 51 |
| XS | 601.8 | 373.7 | 75 | 67 | 100 | 535 | 70 | 445 | 1094.4 | 51 |
| M | 624.8 | 417.6 | 75 | 67 | 125 | 585 | 70 | 445 | 1148 | 51 |
| L | 643.2 | 437.6 | 75 | 67 | 145 | 610 | 70 | 445 | 1175.8 | 51 |
| XL | 661.7 | 457.7 | 75 | 67 | 165 | 635 | 70 | 445 | 1203.7 | 51 |
All measurements in millimetres unless marked (°) for angles.
