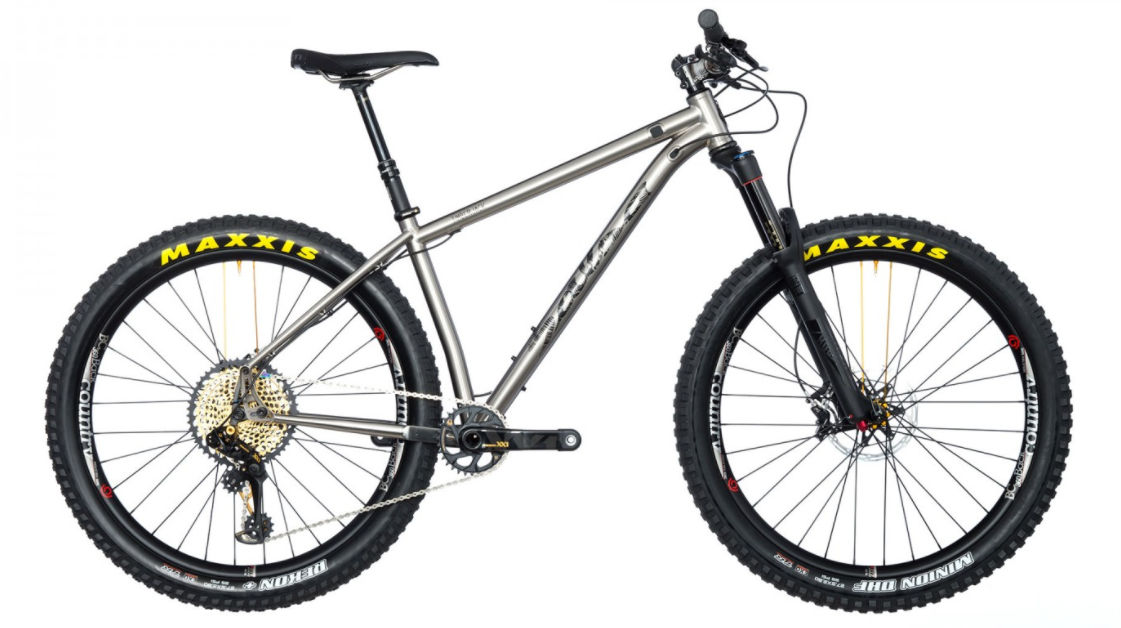

2018 Salsa Timberjack Ti geometry
Full frame geometry for the 2018 Salsa Timberjack Ti, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 694 | 394 | 73.5 | 68 | 100 | 570 | 356 | 694 | 58 | 51 |
| S | 709 | 414 | 73.5 | 68 | 100 | 590 | 381 | 709 | 58 | 51 |
| M | 749 | 431 | 73.5 | 68 | 110 | 610 | 432 | 749 | 58 | 51 |
| L | 786 | 459 | 73.5 | 68 | 120 | 640 | 483 | 786 | 58 | 51 |
| XL | 823 | 484 | 73.5 | 68 | 135 | 670 | 533 | 823 | 58 | 51 |
All measurements in millimetres unless marked (°) for angles.
