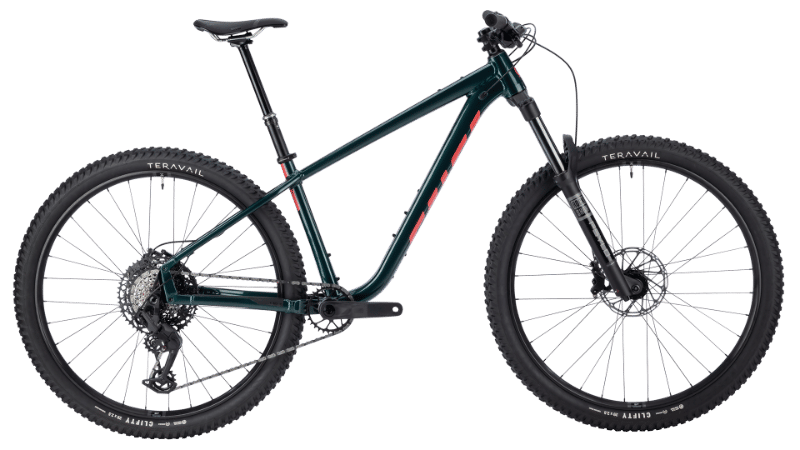

2026 Salsa Timberjack 29 geometry
Full frame geometry for the 2026 Salsa Timberjack 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 599 | 433.6 | 75.1 | 66.4 | 100 | 594.1 | 370 | 722.6 | 56.6 | 437 | 1159.5 | 44 |
| XS | 599 | 410.7 | 75.1 | 66.4 | 100 | 570 | 342.9 | 702.9 | 56.6 | 437 | 1137 | 44 |
| M | 607.4 | 453.6 | 75.1 | 66.4 | 105 | 615.3 | 395 | 742.1 | 56.6 | 437 | 1181.5 | 44 |
| L | 613.5 | 475.5 | 75.1 | 66.4 | 115 | 639 | 432 | 772.1 | 56.6 | 437 | 1197.5 | 44 |
| XL | 625.5 | 492.6 | 75.1 | 66.4 | 125 | 659.3 | 457.2 | 792.9 | 56.6 | 437 | 1228.7 | 44 |
All measurements in millimetres unless marked (°) for angles.
