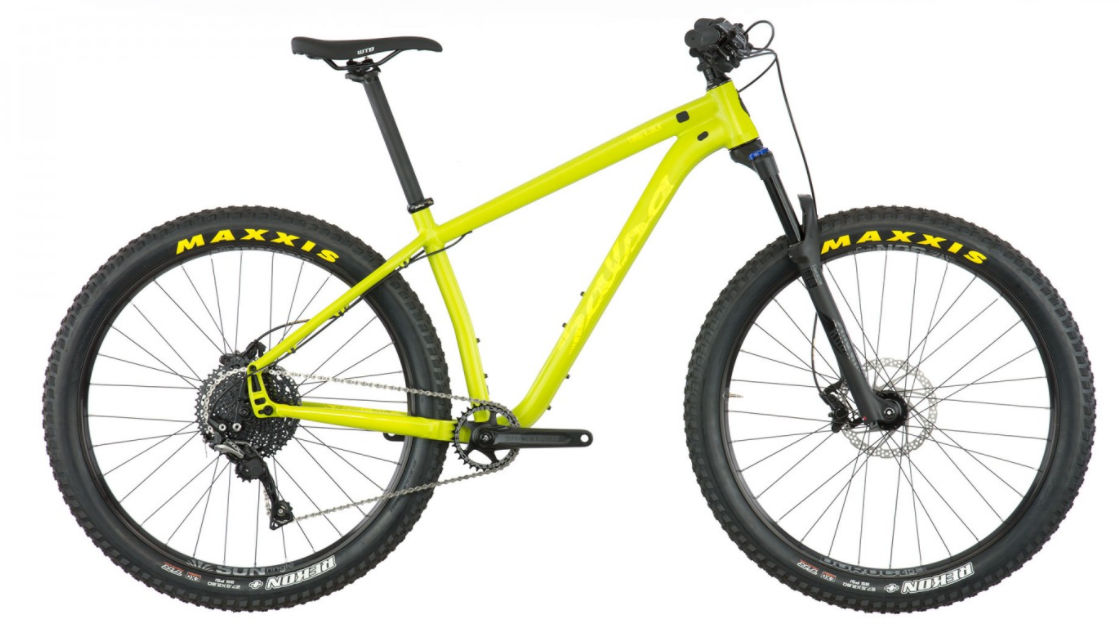

2018 Salsa Timberjack 27.5 geometry
Full frame geometry for the 2018 Salsa Timberjack 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 594 | 421 | 74.3 | 68.7 | 100 | 588 | 381 | 687 | 63 | 42 |
| XS | 594 | 401 | 74.3 | 68.7 | 100 | 568 | 356 | 670 | 63 | 42 |
| M | 602 | 438 | 74.3 | 68.7 | 110 | 608 | 432 | 727 | 63 | 42 |
| L | 612 | 465 | 74.3 | 68.7 | 120 | 638 | 483 | 765 | 63 | 42 |
| XL | 625 | 491 | 74.3 | 68.7 | 135 | 668 | 533 | 802 | 63 | 42 |
All measurements in millimetres unless marked (°) for angles.
