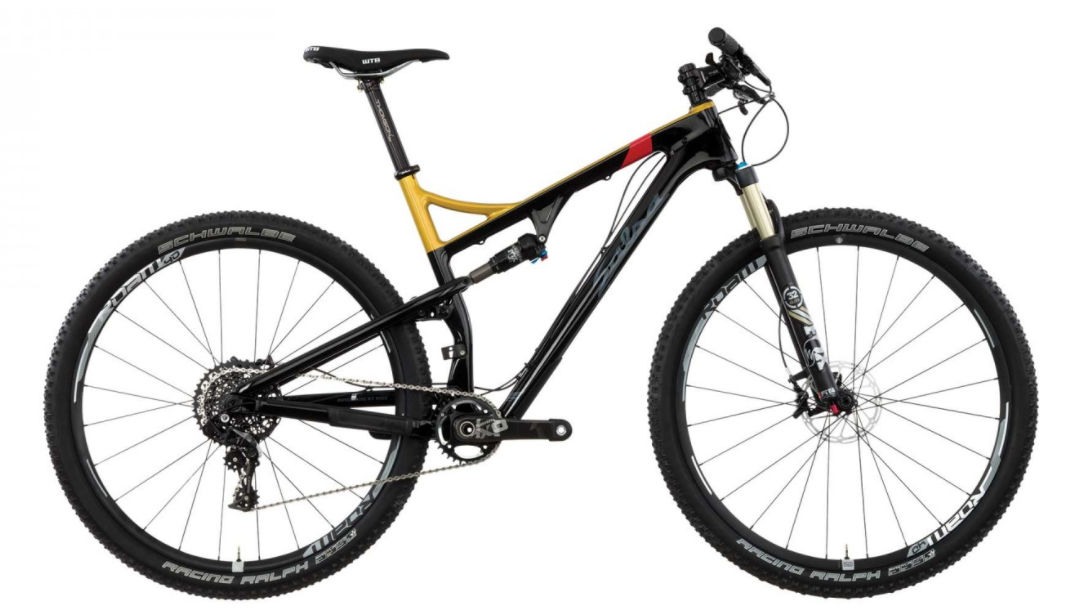

2018 Salsa Spearfish MK I geometry
Full frame geometry for the 2018 Salsa Spearfish MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 597 | 403 | 73.5 | 69.3 | 100 | 580 | 407 | 725 | 45 | — | 437 | 1101 | 51 | — |
| XS | 597 | 388 | 73.5 | 69.3 | 100 | 565 | 407 | 715 | 45 | 653 | 437 | 1086 | 51 | 81 |
| M | 607 | 420 | 73.5 | 69.3 | 110 | 600 | 457 | 734 | 45 | — | 437 | 1121 | 51 | — |
| XL | 616 | 458 | 73.5 | 69.3 | 120 | 640 | 535 | 778 | 45 | — | 437 | 1163 | 51 | — |
| L | 617 | 438 | 73.5 | 69.3 | 120 | 620 | 508 | 755 | 45 | — | 437 | 1142 | 51 | — |
All measurements in millimetres unless marked (°) for angles.
