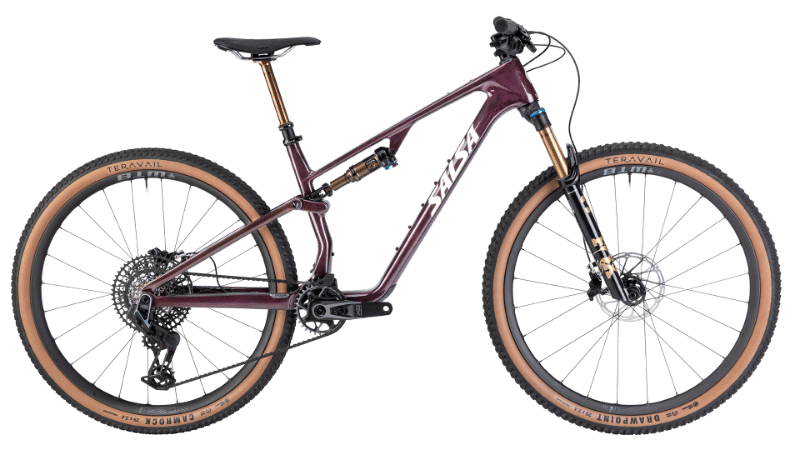

2026 Salsa Spearfish C geometry
Full frame geometry for the 2026 Salsa Spearfish C, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 589.3 | 435 | 77.3 | 66.3 | 95 | 567.8 | 380 | 719.1 | 31 | 430 | 1157 | 44 |
| SM | 598.4 | 450 | 77.3 | 66.3 | 105 | 584.9 | 405 | 719.2 | 31 | 430 | 1176.1 | 44 |
| MD | 607.6 | 470 | 77.3 | 66.3 | 115 | 606.9 | 430 | 719.2 | 31 | 430 | 1200 | 44 |
| LG | 616.7 | 490 | 77.3 | 66.3 | 125 | 629 | 455 | 719.3 | 31 | 430 | 1224.1 | 44 |
| XL | 625.9 | 510 | 77.3 | 66.3 | 130 | 651.1 | 480 | 719.3 | 31 | 430 | 1248.1 | 44 |
All measurements in millimetres unless marked (°) for angles.
