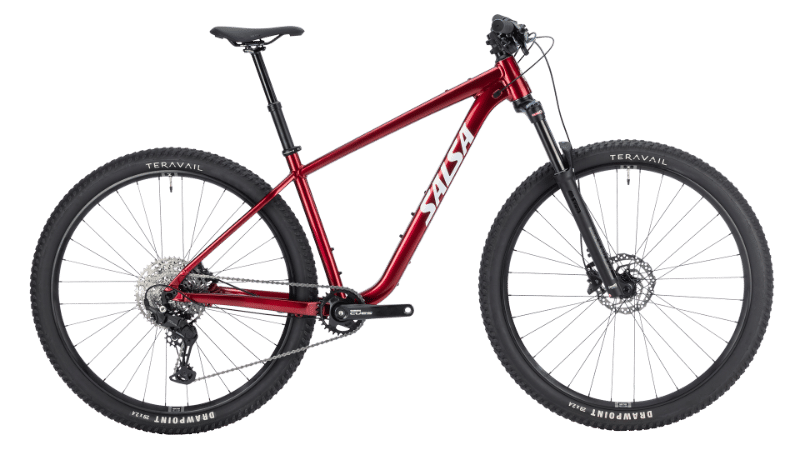

2026 Salsa Rangefinder geometry
Full frame geometry for the 2026 Salsa Rangefinder, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 601.9 | 400.6 | 74.6 | 68.6 | 95 | 566.7 | 355 | 688.6 | 62 | 439 | 1101.9 | 46 |
| S | 606.4 | 421.5 | 74.6 | 68.6 | 100 | 589 | 381 | 708.3 | 62 | 439 | 1124.7 | 46 |
| M | 611 | 444.4 | 74.6 | 68.6 | 105 | 613.3 | 431 | 747.2 | 61.9 | 439 | 1149.6 | 46 |
| L | 620.1 | 470.4 | 74.5 | 68.5 | 115 | 641.9 | 470 | 779.1 | 61.8 | 439 | 1179.4 | 46 |
| XL | 629.3 | 494.3 | 74.5 | 68.5 | 125 | 668.5 | 508 | 808.7 | 61.7 | 439 | 1207.1 | 46 |
All measurements in millimetres unless marked (°) for angles.
