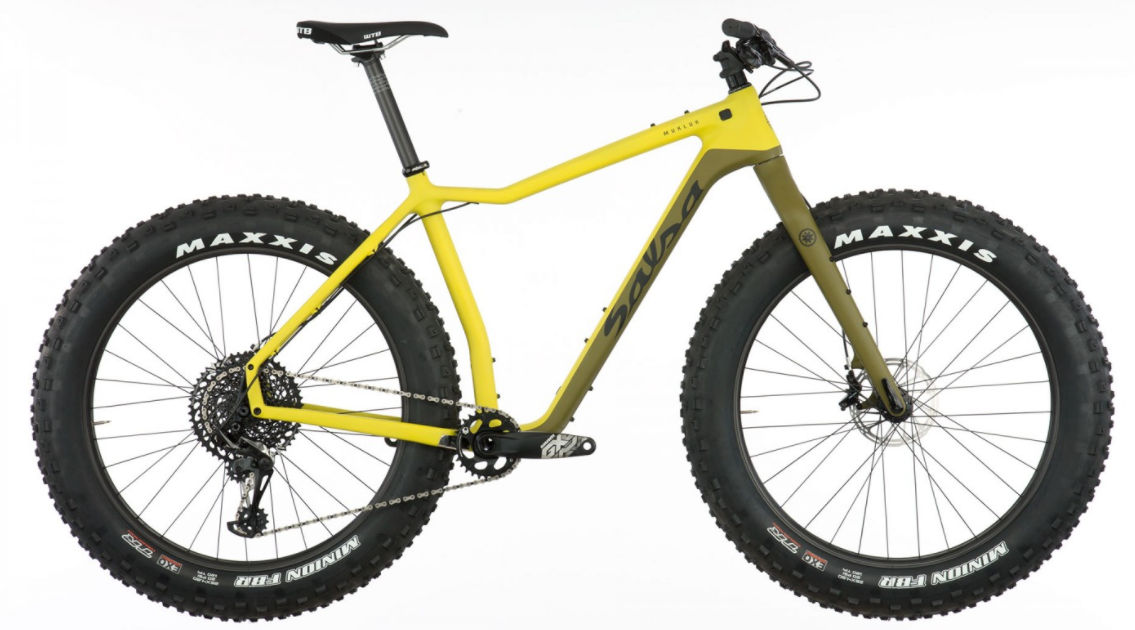

2018 Salsa Mukluk Carbon geometry
Full frame geometry for the 2018 Salsa Mukluk Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 593 | 392 | 73 | 69 | 103 | 573 | 381 | 656 | 63 | 1077 | 51 |
| S | 602 | 410 | 73 | 69 | 113 | 574 | 406 | 678 | 63 | 1099 | 51 |
| M | 611 | 428 | 73 | 69 | 123 | 615 | 457 | 723 | 63 | 1121 | 51 |
| L | 621 | 446 | 73 | 69 | 133 | 636 | 508 | 765 | 63 | 1142 | 51 |
| XL | 630 | 464 | 73 | 69 | 143 | 657 | 558 | 800 | 63 | 1164 | 51 |
All measurements in millimetres unless marked (°) for angles.
