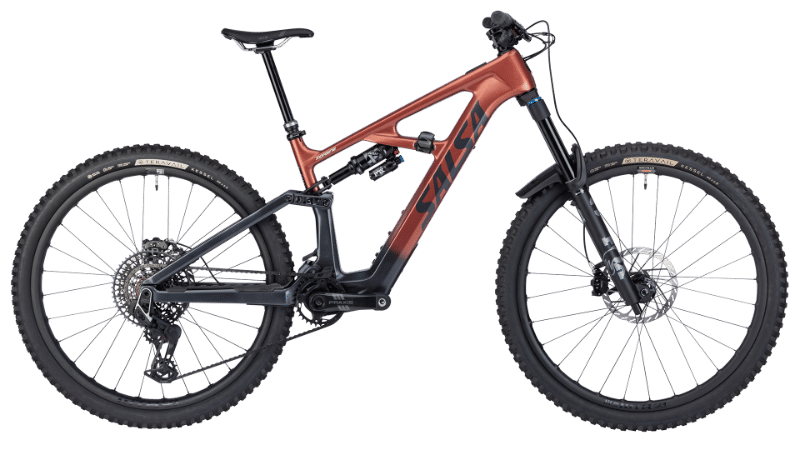

2026 Salsa Moraine C geometry
Full frame geometry for the 2026 Salsa Moraine C, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 613.6 | 453 | 77.4 | 63.9 | 100 | 590.2 | 405 | 754 | 25 | 435.3 | 1225 | 44 |
| MD | 622.6 | 473 | 77.4 | 63.9 | 110 | 612.2 | 430 | 754 | 25 | 435.3 | 1249.4 | 44 |
| LG | 631.6 | 494 | 77.4 | 63.9 | 120 | 634.2 | 455 | 754 | 25 | 435.3 | 1274.8 | 44 |
| XL | 640.5 | 513 | 77.4 | 63.9 | 130 | 656.2 | 480 | 754 | 25 | 435.3 | 1298.2 | 44 |
All measurements in millimetres unless marked (°) for angles.
