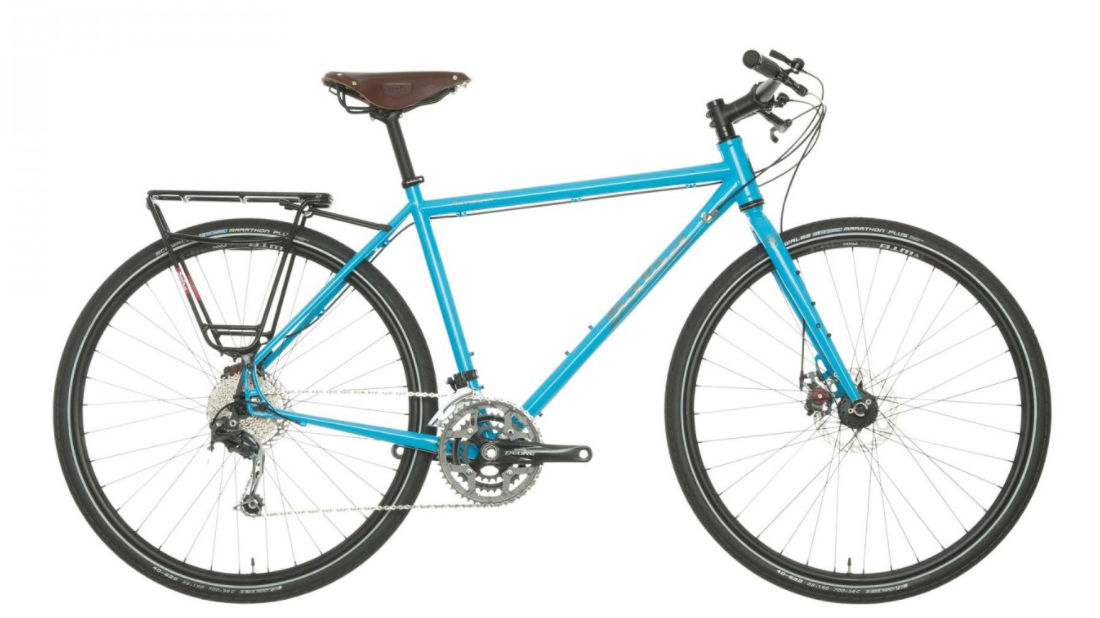

2018 Salsa Marrakesh Flatbar geometry
Full frame geometry for the 2018 Salsa Marrakesh Flatbar, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 547 | 418 | 75 | 70.8 | 93 | 565 | 440 | 702 | 77 | 55 |
| S | 563 | 426 | 74 | 70.8 | 110 | 588 | 480 | 734 | 77 | 55 |
| M | 573 | 440 | 73.5 | 70.8 | 120 | 610 | 527 | 766 | 77 | 55 |
| L | 595 | 445 | 72.8 | 70.8 | 144 | 630 | 573 | 803 | 77 | 55 |
| XL | 621 | 448 | 72 | 70.8 | 171 | 650 | 620 | 841 | 77 | 55 |
All measurements in millimetres unless marked (°) for angles.
