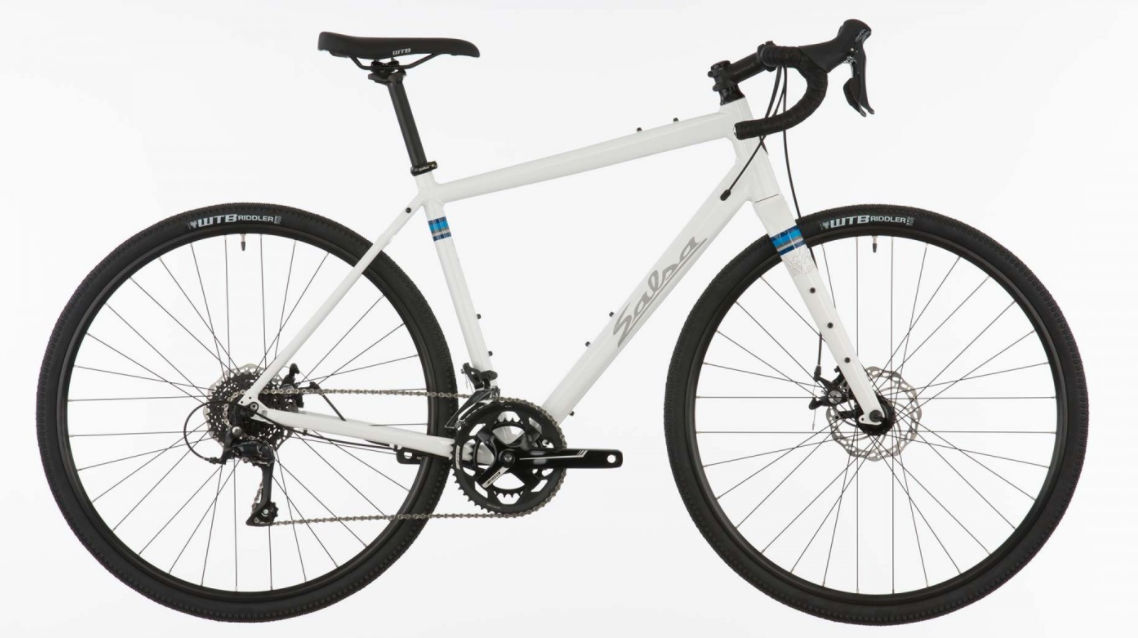

2018 Salsa Journeyman geometry
Full frame geometry for the 2018 Salsa Journeyman, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 528 | 364 | 75.5 | 70 | 100 | 500 | 380 | 666 | 72 | 440 | 1017 | 50 |
| 52 | 544 | 364 | 74 | 70.5 | 115 | 520 | 450 | 720 | 72 | 440 | 1018 | 50 |
| 54 | 567 | 367 | 73 | 70.5 | 140 | 540 | 470 | 742 | 72 | 440 | 1029 | 50 |
| 55.5 | 595 | 373 | 73 | 70.5 | 170 | 555 | 510 | 778 | 72 | 440 | 1045 | 50 |
| 57 | 624 | 379 | 72.5 | 70.5 | 200 | 570 | 530 | 801 | 72 | 440 | 1061 | 50 |
| 59.5 | 639 | 394 | 72.5 | 70.5 | 215 | 595 | 560 | 823 | 72 | 440 | 1081 | 50 |
All measurements in millimetres unless marked (°) for angles.
