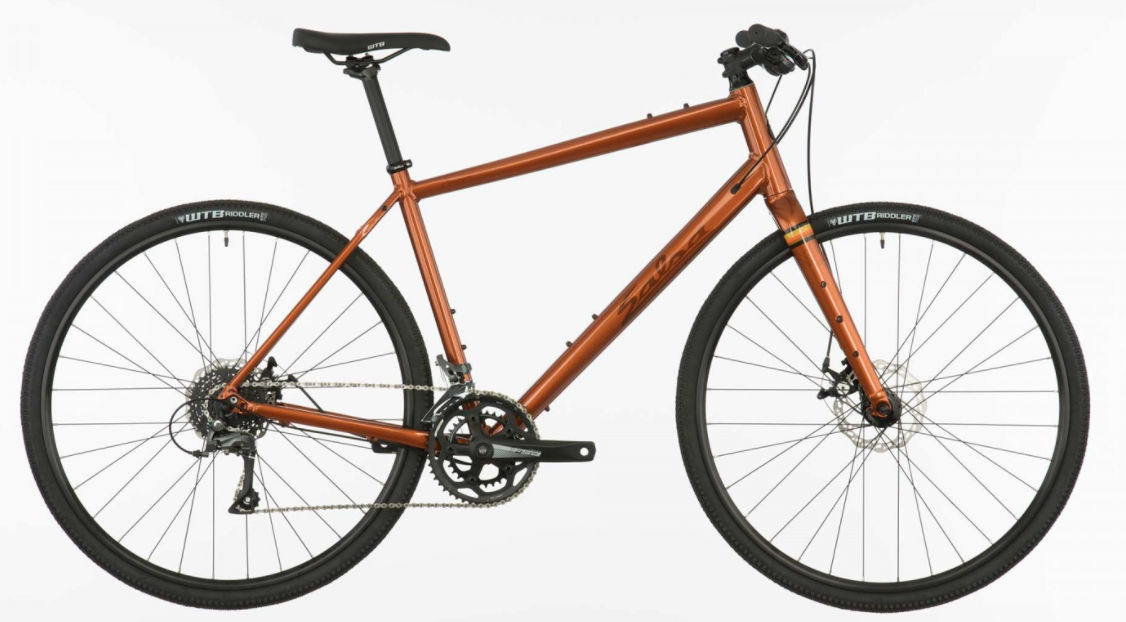

2018 Salsa Journeyman Flatbar geometry
Full frame geometry for the 2018 Salsa Journeyman Flatbar, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 529 | 413 | 74 | 70.5 | 100 | 565 | 380 | 660 | 72 | 440 | 1062 | 50 |
| S | 558 | 420 | 73 | 70.5 | 130 | 590 | 450 | 719 | 72 | 440 | 1079 | 50 |
| M | 586 | 431 | 73 | 70.5 | 160 | 610 | 470 | 741 | 72 | 440 | 1100 | 50 |
| L | 614 | 442 | 73 | 70.5 | 190 | 630 | 510 | 777 | 72 | 440 | 1121 | 50 |
| XL | 638 | 449 | 72.5 | 70.5 | 215 | 650 | 530 | 797 | 72 | 440 | 1136 | 50 |
All measurements in millimetres unless marked (°) for angles.
