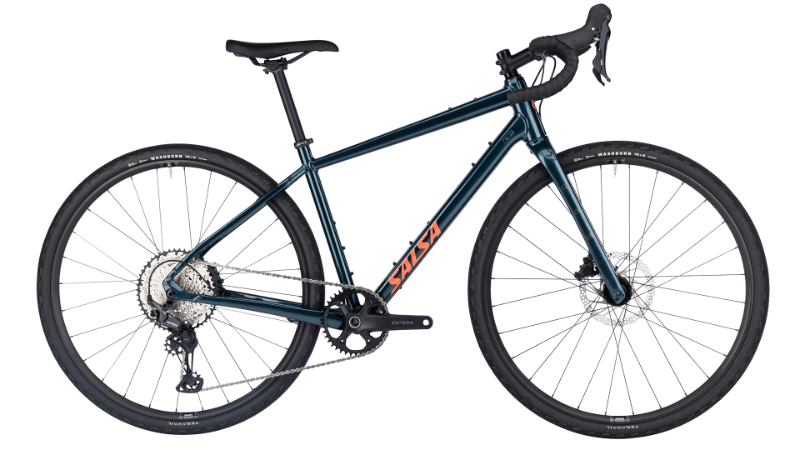

2026 Salsa Journeyer geometry
Full frame geometry for the 2026 Salsa Journeyer, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 510 | 366 | 76 | 68.5 | 90 | 493 | 340 | 617 | 70 | 440 | 1027 | 50 |
| 51 | 528 | 369 | 75 | 69.5 | 105 | 510 | 380 | 652 | 70 | 440 | 1028 | 50 |
| 53 | 552 | 372 | 74 | 69.5 | 130 | 530 | 410 | 688 | 70 | 440 | 1040 | 50 |
| 55 | 570 | 376 | 73 | 69.5 | 150 | 550 | 450 | 724 | 70 | 440 | 1051 | 50 |
| 57 | 599 | 387 | 73 | 69.5 | 180 | 570 | 490 | 760 | 70 | 440 | 1072 | 50 |
| 60 | 627 | 409 | 73 | 69.5 | 210 | 600 | 520 | 807 | 70 | 440 | 1104 | 50 |
All measurements in millimetres unless marked (°) for angles.
