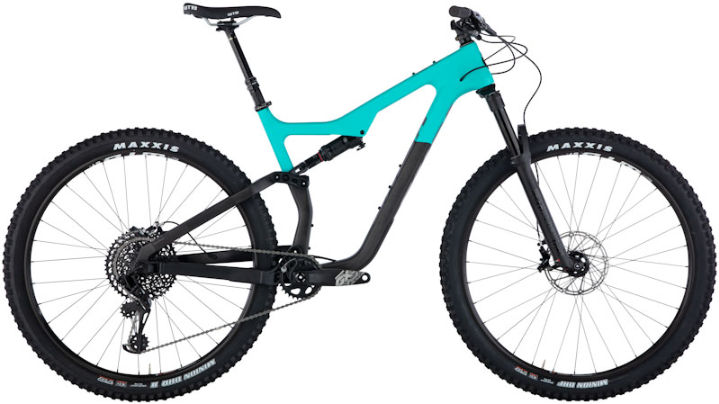

2019 Salsa Horsethief Carbon MK II geometry
Full frame geometry for the 2019 Salsa Horsethief Carbon MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 614 | 414 | 73.6 | 67 | 103 | 595 | 419 | 749 | 30 | 432 | 1148 | 51 |
| M | 623 | 433 | 73.6 | 67 | 113 | 617 | 444 | 754 | 31 | 432 | 1171 | 51 |
| L | 632 | 452 | 73.6 | 67 | 123 | 639 | 483 | 765 | 31 | 432 | 1194 | 51 |
| XL | 642 | 471 | 73.6 | 67 | 133 | 660 | 520 | 775 | 31 | 432 | 1216 | 51 |
All measurements in millimetres unless marked (°) for angles.
