2026 Salsa · G

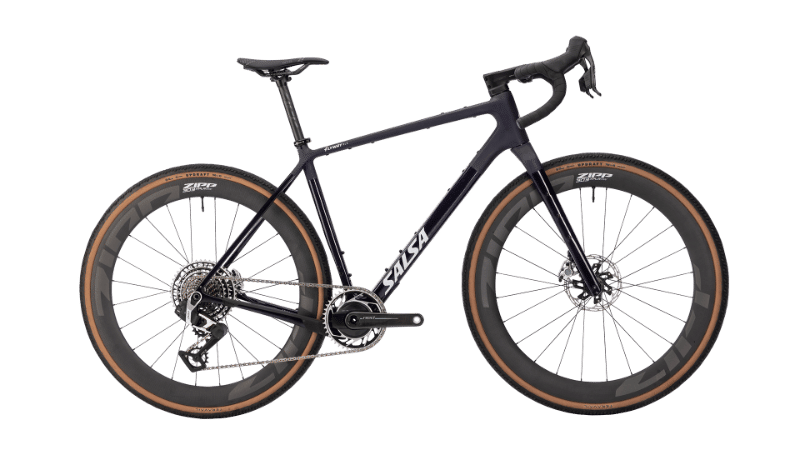

2026 Salsa Flyway C geometry
Full frame geometry for the 2026 Salsa Flyway C, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 540.5 | 375.2 | 76 | 70.5 | 90 | 510 | 390 | 682 | 76 | 425 | 1012 | 51 |
| SM | 549.9 | 387.7 | 75 | 70.5 | 100 | 535 | 430 | 715 | 76 | 425 | 1027.7 | 51 |
| MD | 568.8 | 391.9 | 74 | 70.5 | 120 | 555 | 470 | 749 | 76 | 425 | 1038.7 | 51 |
| ML | 592.3 | 405.2 | 74 | 70.5 | 145 | 575 | 505 | 780 | 76 | 425 | 1060.2 | 51 |
| LG | 625.3 | 420.7 | 74 | 70.5 | 180 | 600 | 540 | 814 | 76 | 425 | 1087.5 | 51 |
| XL | 644.2 | 435.3 | 74 | 70.5 | 200 | 620 | 575 | 843 | 76 | 425 | 1108.7 | 51 |
All measurements in millimetres unless marked (°) for angles.
