2018 Salsa · G

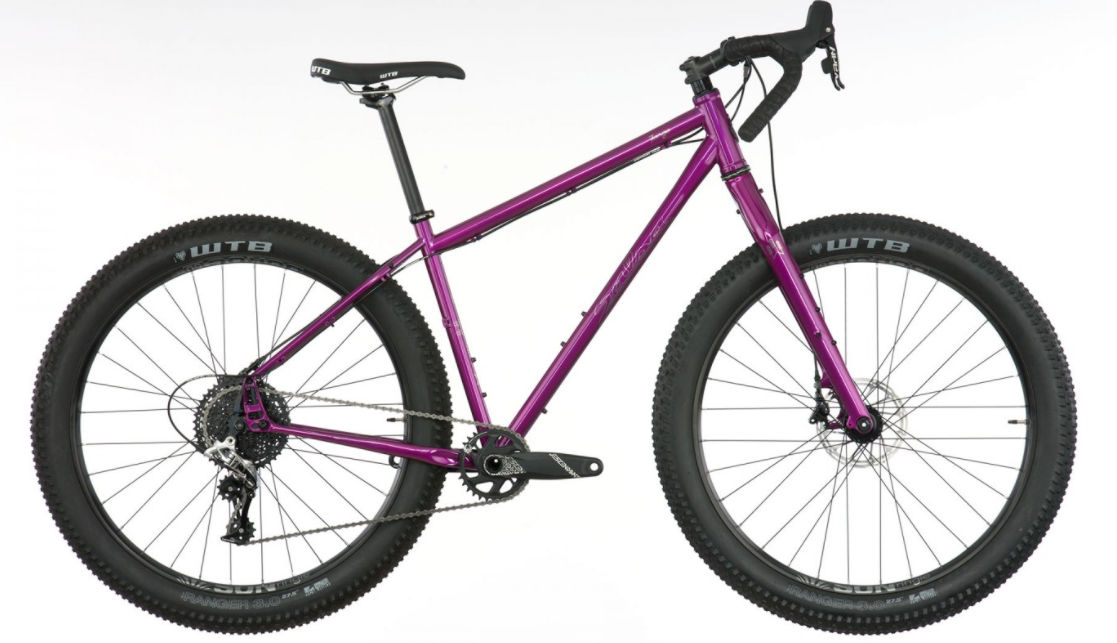

2018 Salsa Fargo MKII geometry
Full frame geometry for the 2018 Salsa Fargo MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 594 | 350 | 74 | 68.5 | 90 | 520 | 356 | 690 | 70 | 45 |
| S | 615 | 352 | 74 | 69 | 110 | 540 | 406 | 732 | 70 | 45 |
| M | 643 | 368 | 73 | 69 | 140 | 565 | 457 | 778 | 70 | 45 |
| L | 671 | 385 | 73 | 69 | 140 | 590 | 508 | 821 | 70 | 45 |
| XL | 690 | 409 | 73 | 69 | 190 | 620 | 559 | 859 | 70 | 45 |
All measurements in millimetres unless marked (°) for angles.
