2020 Salsa · G

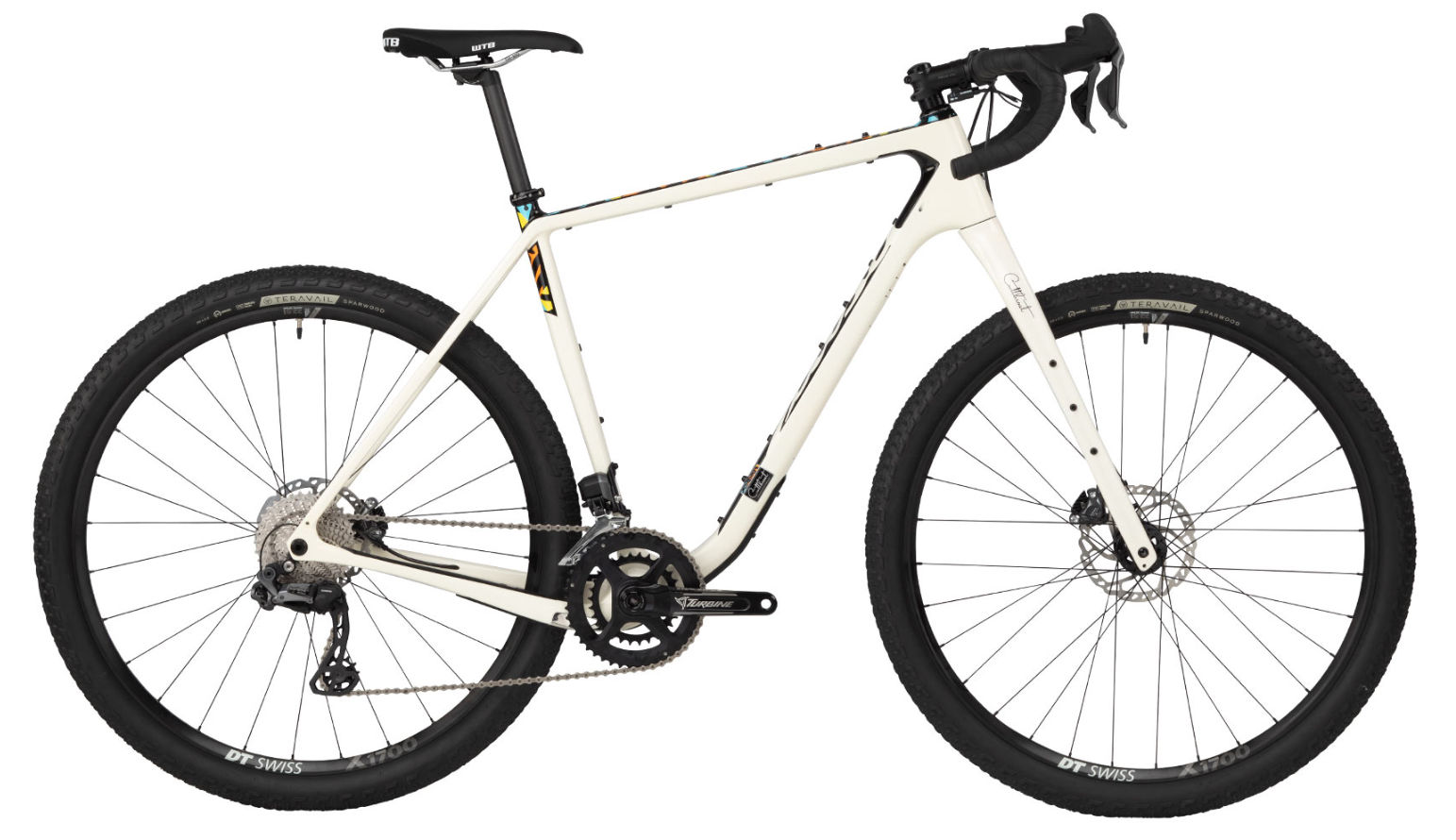

2020 Salsa Cutthroat MK II geometry
Full frame geometry for the 2020 Salsa Cutthroat MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 585 | 358 | 74.5 | 69 | 90 | 520 | 356 | 700 | 70 | 614 | 445 | 1050 | 51 | 88 |
| 54 | 592 | 373 | 74.2 | 69 | 98 | 540 | 419 | 742 | 70 | 632 | 445 | 1068 | 51 | 88 |
| 56 | 620 | 385 | 74.2 | 69 | 127 | 560 | 508 | 811 | 70 | 655 | 445 | 1090 | 51 | 88 |
| 58 | 645 | 395 | 74 | 69 | 154 | 580 | 559 | 852 | 70 | 674 | 445 | 1110 | 51 | 88 |
| 60 | 664 | 406 | 73.8 | 69 | 175 | 600 | 584 | 874 | 70 | 693 | 445 | 1129 | 51 | 88 |
All measurements in millimetres unless marked (°) for angles.
