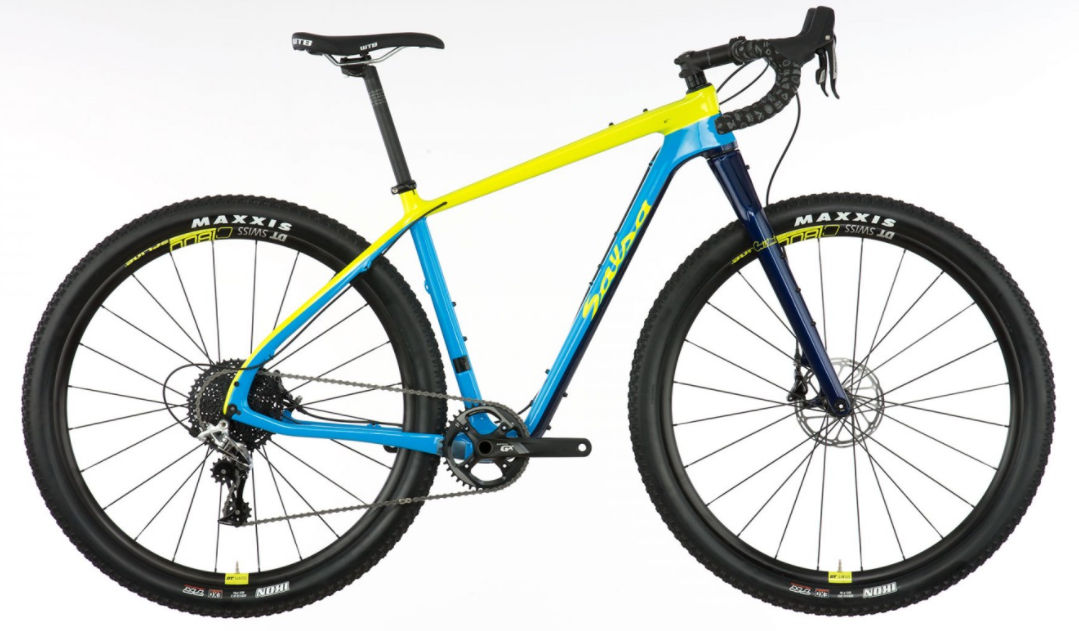

2018 Salsa Cutthroat MK I geometry
Full frame geometry for the 2018 Salsa Cutthroat MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 594 | 375 | 74 | 70 | 90 | 545 | 406 | 719 | 70 | 445 | 1053 | 45 |
| M | 620 | 376 | 74 | 70 | 115 | 565 | 483 | 787 | 70 | 445 | 1057 | 45 |
| L | 645 | 383 | 73 | 71 | 140 | 580 | 533 | 830 | 70 | 445 | 1068 | 45 |
| XL | 664 | 397 | 73 | 71 | 160 | 600 | 584 | 869 | 70 | 445 | 1089 | 45 |
All measurements in millimetres unless marked (°) for angles.
