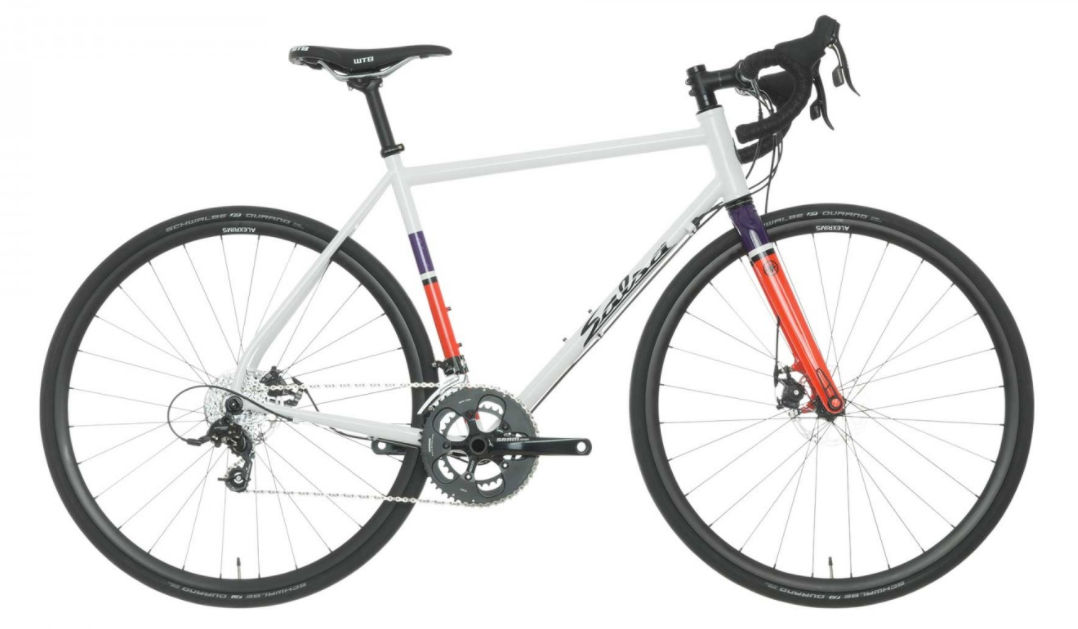

2018 Salsa Colossal geometry
Full frame geometry for the 2018 Salsa Colossal, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51 | 509 | 386 | 75.5 | 71.5 | 100 | 518 | 450 | 703 | 70 | 415 | 988 | 43 |
| 53 | 530 | 383 | 74 | 72 | 120 | 535 | 485 | 733 | 70 | 415 | 987 | 43 |
| 55 | 551 | 387 | 73.5 | 72.5 | 140 | 550 | 515 | 760 | 70 | 415 | 993 | 43 |
| 56 | 570 | 391 | 73 | 72.5 | 160 | 565 | 530 | 776 | 70 | 415 | 1003 | 43 |
| 58 | 595 | 392 | 72.5 | 73 | 185 | 580 | 555 | 800 | 70 | 415 | 1007 | 43 |
| 60 | 619 | 399 | 72 | 73 | 210 | 600 | 580 | 824 | 70 | 415 | 1021 | 43 |
All measurements in millimetres unless marked (°) for angles.
