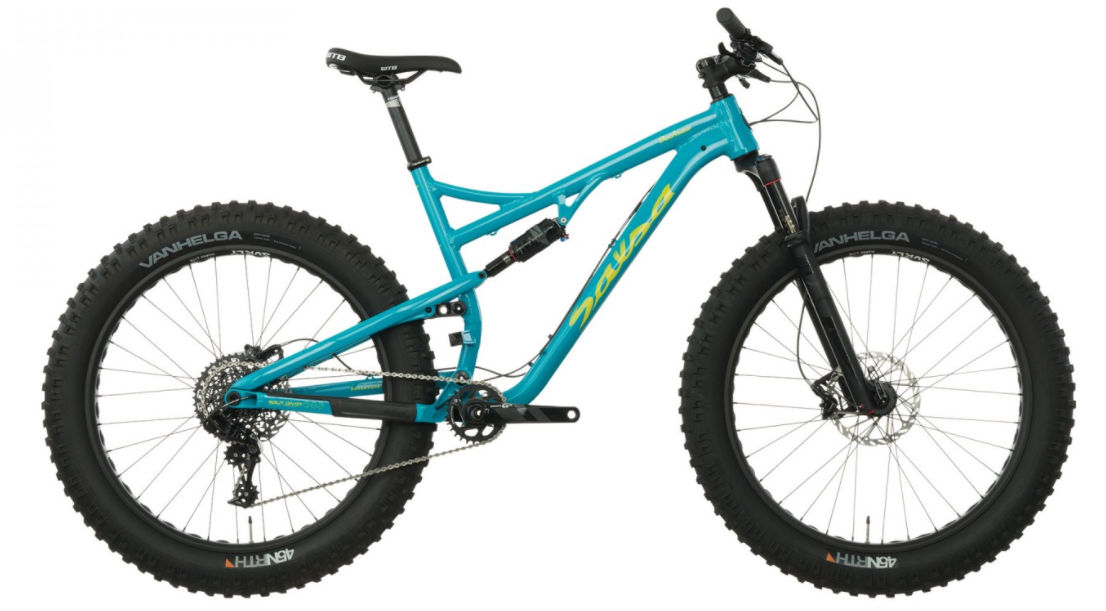

2015 Salsa Bucksaw geometry
Full frame geometry for the 2015 Salsa Bucksaw, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 576 | 419 | 73.5 | 67.7 | 100 | 590 | 387 | 729 | 26 | 444 | 1143 | 50 |
| L | 585 | 457 | 73.5 | 67.7 | 110 | 630 | 483 | 762 | 26 | 444 | 1184 | 50 |
| M | 585 | 437 | 73.5 | 67.7 | 110 | 610 | 432 | 743 | 26 | 444 | 1164 | 50 |
| XL | 594 | 474 | 73.5 | 67.7 | 120 | 650 | 533 | 775 | 26 | 444 | 1205 | 50 |
All measurements in millimetres unless marked (°) for angles.
