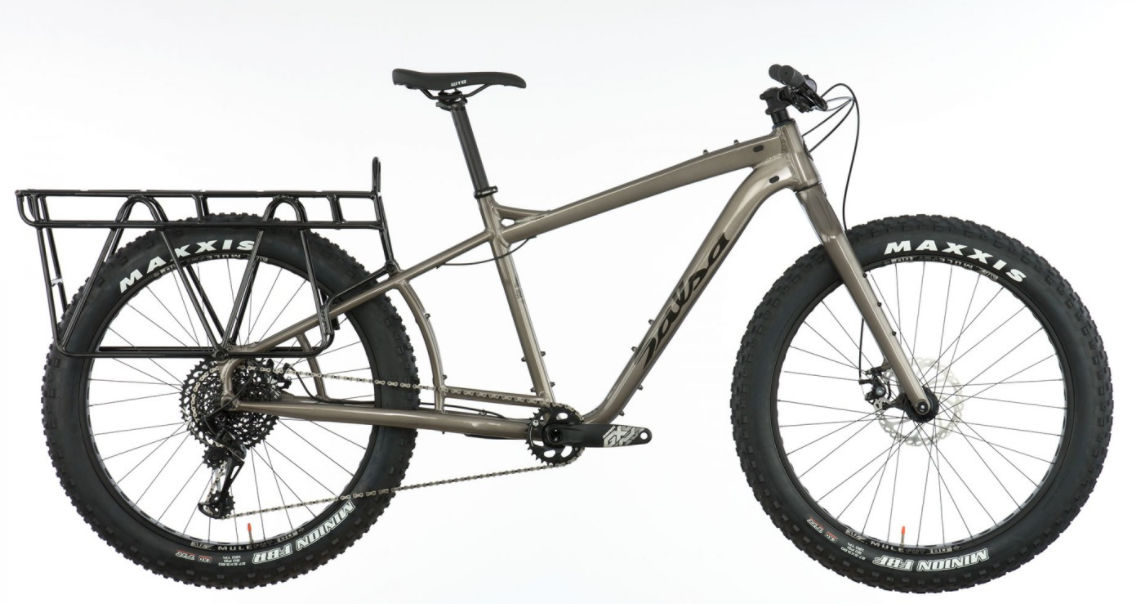

2018 Salsa Blackborow MKII geometry
Full frame geometry for the 2018 Salsa Blackborow MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 599 | 397 | 73 | 69 | 110 | 580 | 457 | 704 | 60 | 650 | 1306 | 51 |
| M | 608 | 424 | 73 | 69 | 120 | 610 | 457 | 737 | 60 | 650 | 1336 | 51 |
| L | 618 | 451 | 73 | 69 | 130 | 640 | 508 | 763 | 60 | 650 | 1367 | 51 |
All measurements in millimetres unless marked (°) for angles.
