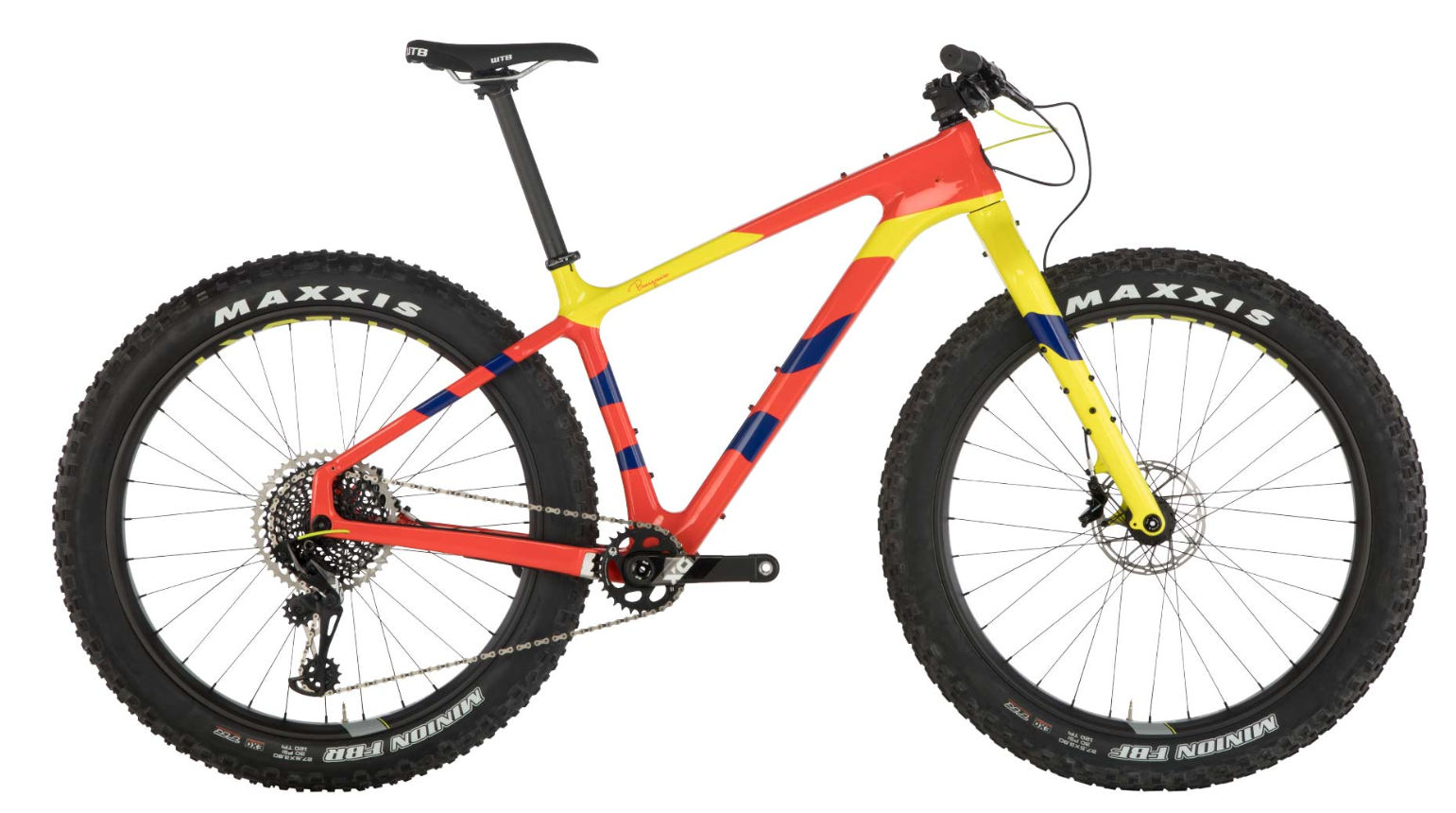

2019 Salsa Beargrease Carbon MKII geometry
Full frame geometry for the 2019 Salsa Beargrease Carbon MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 588 | 391 | 73.5 | 68.6 | 98 | 565 | 368 | 684 | 65 | 440 | 1086 | 51 |
| SM | 597 | 408 | 73 | 68.6 | 108 | 591 | 406 | 727 | 65 | 440 | 1107 | 51 |
| M | 607 | 426 | 73 | 68.6 | 118 | 612 | 444 | 744 | 65 | 440 | 1129 | 51 |
| L | 616 | 445 | 73 | 68.6 | 128 | 633 | 483 | 775 | 65 | 440 | 1151 | 51 |
| XL | 625 | 463 | 73 | 68.6 | 138 | 654 | 521 | 804 | 65 | 440 | 1173 | 51 |
All measurements in millimetres unless marked (°) for angles.
