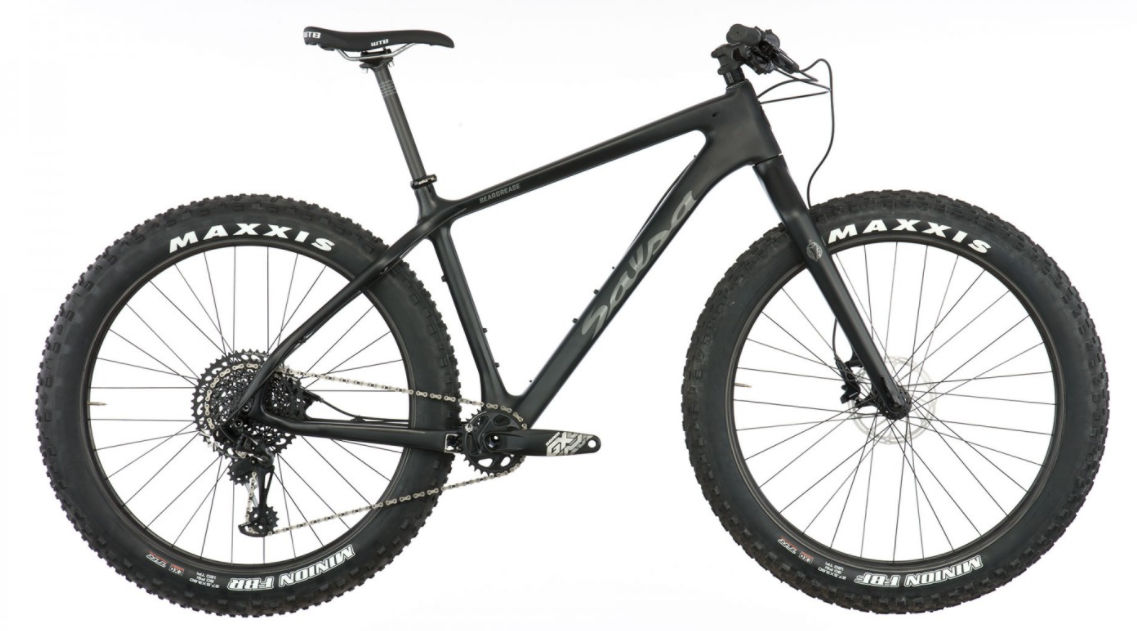

2018 Salsa Beargrease Carbon MKI geometry
Full frame geometry for the 2018 Salsa Beargrease Carbon MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 594 | 404 | 73.5 | 68.5 | 105 | 580 | 381 | 708 | 63 | 440 | 1103 | 51 |
| M | 613 | 418 | 73 | 68.5 | 125 | 605 | 432 | 740 | 63 | 440 | 1124 | 51 |
| L | 627 | 433 | 73 | 68.5 | 140 | 625 | 483 | 781 | 63 | 440 | 1145 | 51 |
| XL | 636 | 446 | 73 | 68.5 | 150 | 640 | 533 | 818 | 63 | 440 | 1161 | 51 |
All measurements in millimetres unless marked (°) for angles.
