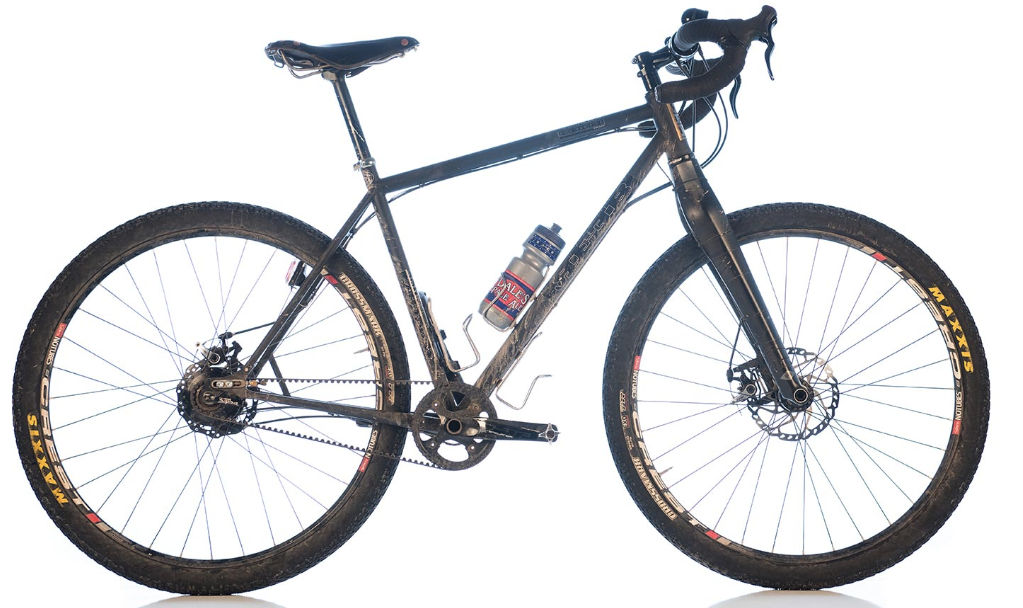

2018 REEB The Sams Pants geometry
Full frame geometry for the 2018 REEB The Sams Pants, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 599 | 368 | 74 | 70.5 | 104 | 556 | 460 | 777 | 69 | 596 | 439 | 1026 | 39 | 88 |
| M | 615 | 394 | 73.5 | 70.5 | 114 | 574 | 485 | 795 | 69 | 639 | 439 | 1069 | 39 | 88 |
| L | 627 | 409 | 73 | 70.5 | 114 | 599 | 531 | 810 | 69 | 659 | 439 | 1090 | 39 | 88 |
| XL | 638 | 424 | 72.5 | 70.5 | 140 | 625 | 551 | 838 | 69 | 677 | 439 | 1107 | 39 | 88 |
All measurements in millimetres unless marked (°) for angles.
