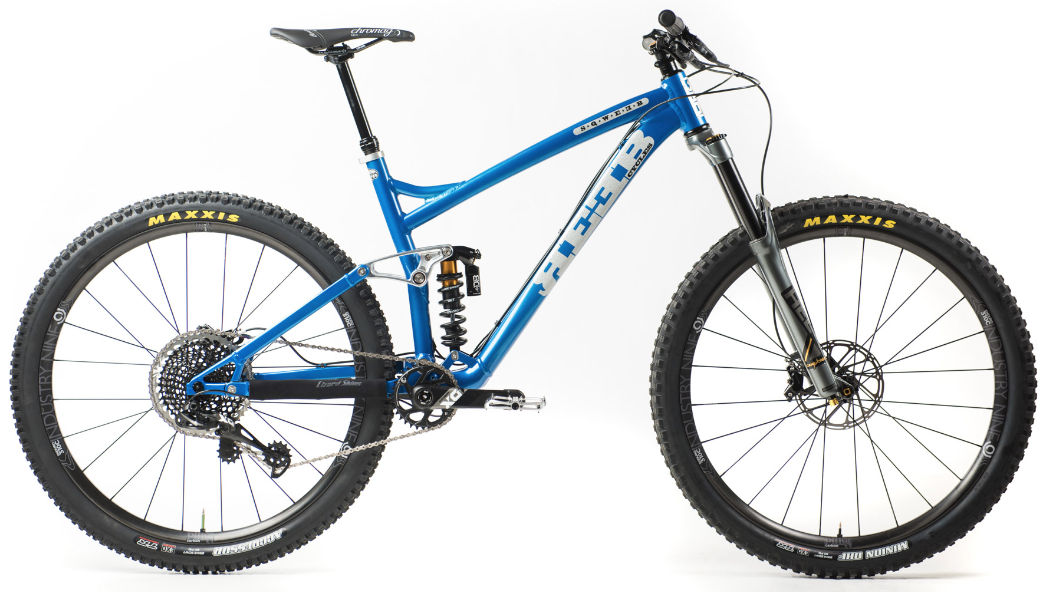

2019 REEB Sqweeb geometry
Full frame geometry for the 2019 REEB Sqweeb, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 602 | 425 | 75 | 66 | 95 | 583 | 413 | 704 | 23 | 738 | 434 | 1171 | 51 | 112 |
| M | 624 | 450 | 75 | 65 | 105 | 617 | 425 | 733 | 23 | 786 | 434 | 1219 | 51 | 120 |
| L | 628 | 475 | 75 | 65 | 110 | 643 | 475 | 767 | 23 | 813 | 434 | 1246 | 51 | 120 |
| XL | 643 | 500 | 75 | 65 | 115 | 668 | 533 | 802 | 23 | 840 | 434 | 1273 | 51 | 120 |
All measurements in millimetres unless marked (°) for angles.
