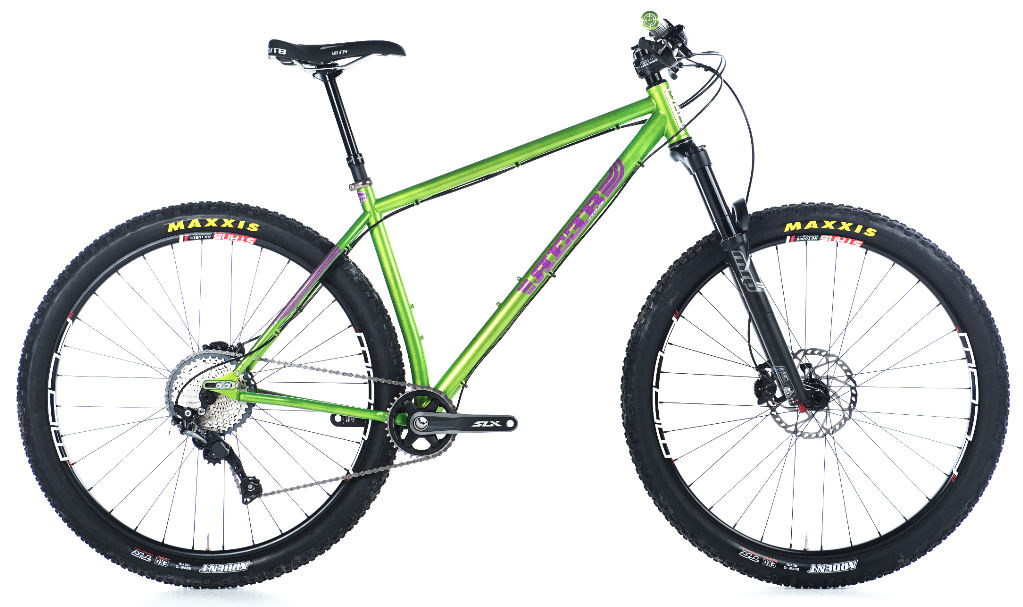

2018 REEB Dikyelous2 geometry
Full frame geometry for the 2018 REEB Dikyelous2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 638 | 414 | 75 | 67 | 94 | 579 | 404 | 798 | 58 | 706 | 408 | 1107 | 51 | 104 |
| M | 643 | 434 | 75 | 67 | 104 | 607 | 444 | 815 | 51 | 743 | 408 | 1146 | 51 | 104 |
| L | 650 | 457 | 75 | 67 | 114 | 630 | 483 | 851 | 51 | 770 | 408 | 1174 | 51 | 104 |
| XL | 663 | 483 | 75 | 67 | 130 | 648 | 533 | 876 | 51 | 793 | 408 | 1196 | 51 | 104 |
All measurements in millimetres unless marked (°) for angles.
