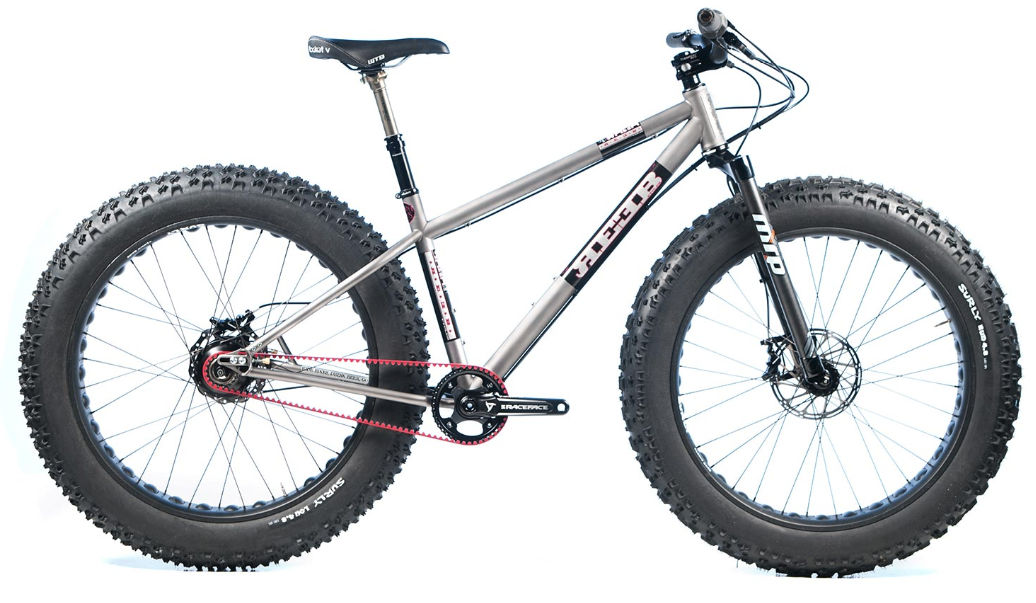

2018 REEB Donkadonk geometry
Full frame geometry for the 2018 REEB Donkadonk, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 592 | 396 | 73.5 | 69 | 104 | 572 | 366 | 757 | 58 | 646 | 465 | 1105 | 42 | 109 |
| M | 599 | 414 | 73 | 69 | 114 | 597 | 414 | 790 | 58 | 654 | 465 | 1112 | 42 | 109 |
| L | 612 | 429 | 72.5 | 69 | 130 | 622 | 450 | 813 | 58 | 674 | 465 | 1133 | 42 | 109 |
| XL | 622 | 447 | 72 | 69 | 140 | 648 | 483 | 831 | 58 | 695 | 465 | 1153 | 42 | 109 |
All measurements in millimetres unless marked (°) for angles.
