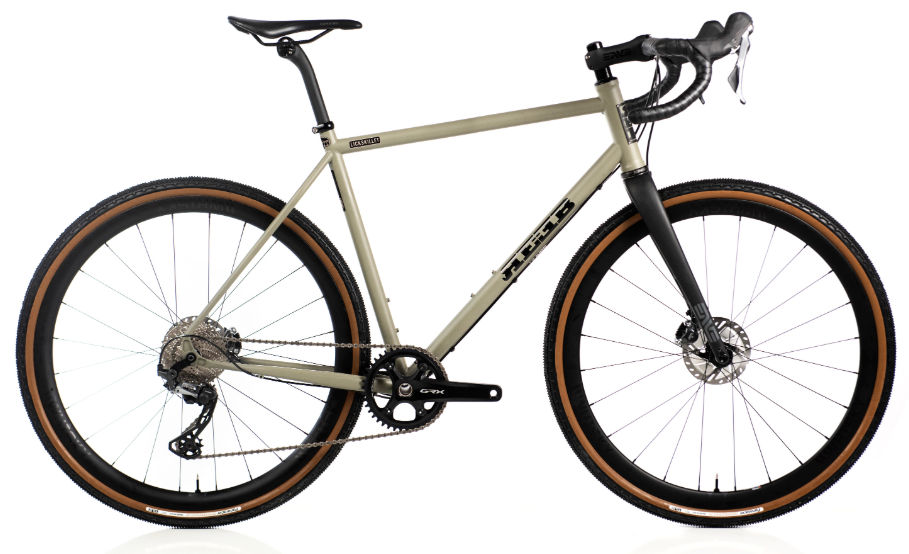

2020 REEB Lickskillet Steel geometry
Full frame geometry for the 2020 REEB Lickskillet Steel, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51 | 546 | 369 | 75 | 69.5 | 110 | 515 | 460 | 737 | 80 | 602 | 428 | 1017 | 50 | 80 |
| 53 | 557 | 375 | 74.5 | 70 | 120 | 530 | 480 | 753 | 80 | 608 | 428 | 1023 | 50 | 76 |
| 55 | 577 | 385 | 74 | 71 | 140 | 550 | 500 | 776 | 78 | 614 | 428 | 1030 | 50 | 70 |
| 57 | 591 | 395 | 73.5 | 71.5 | 155 | 570 | 525 | 799 | 75 | 625 | 428 | 1042 | 50 | 66 |
| 59 | 610 | 404 | 73 | 71.5 | 175 | 590 | 555 | 825 | 75 | 640 | 428 | 1057 | 50 | 66 |
| 61 | 621 | 417 | 72.8 | 72 | 190 | 610 | 580 | 848 | 70 | 653 | 428 | 1071 | 50 | 63 |
All measurements in millimetres unless marked (°) for angles.
