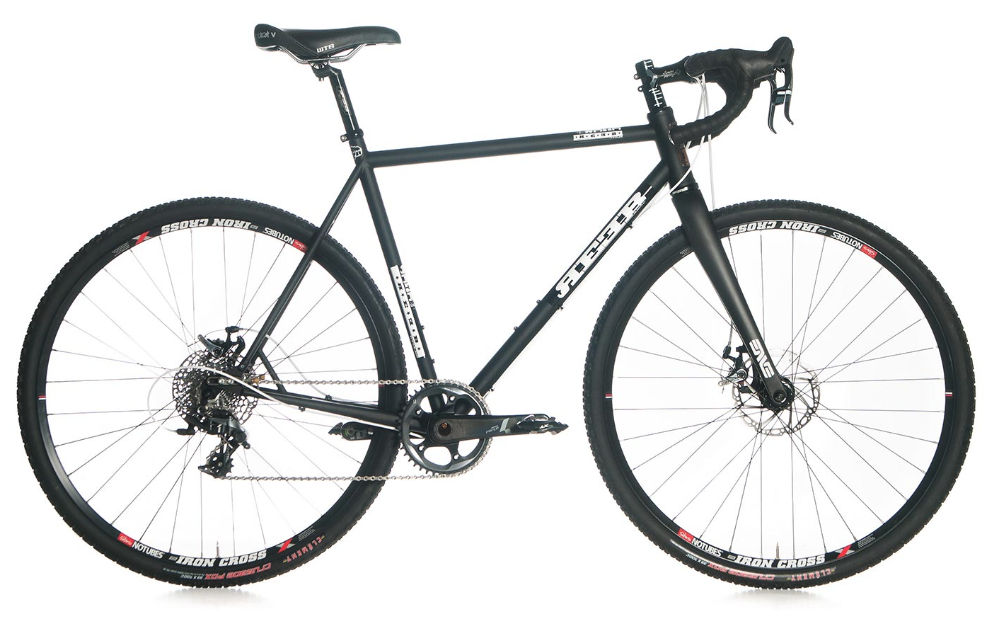

2018 REEB Dirt Diggler Ti geometry
Full frame geometry for the 2018 REEB Dirt Diggler Ti, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 534 | 372 | 74.5 | 70.5 | 105 | 520 | 440 | 710 | 68 | 590 | 420 | 1001 | 47 | 75 |
| S | 546 | 374 | 74 | 71 | 115 | 530 | 470 | 730 | 68 | 591 | 420 | 1002 | 47 | 71 |
| M | 559 | 380 | 73.5 | 71.5 | 130 | 545 | 500 | 753 | 65 | 598 | 420 | 1009 | 47 | 68 |
| L | 570 | 391 | 73 | 72 | 140 | 565 | 530 | 773 | 65 | 608 | 420 | 1019 | 47 | 65 |
| XL | 579 | 407 | 72.5 | 72 | 150 | 590 | 560 | 791 | 65 | 627 | 420 | 1039 | 47 | 65 |
| XXL | 599 | 421 | 72 | 72 | 170 | 615 | 590 | 814 | 65 | 646 | 420 | 1058 | 47 | 65 |
All measurements in millimetres unless marked (°) for angles.
