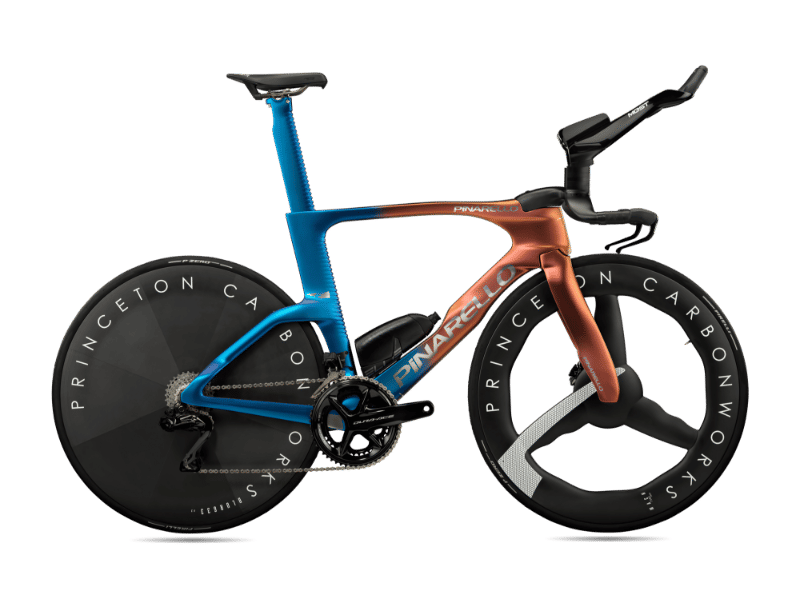

2026 Pinarello Bolide F TT geometry
Full frame geometry for the 2026 Pinarello Bolide F TT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 450 | 461 | 380 | 77 | 72 | 70 | 488 | 472 | 57 | 395 | 43 |
| 485 | 479 | 396 | 77 | 72.5 | 82 | 507 | 492 | 62 | 395 | 43 |
| 520 | 494 | 413 | 77 | 73 | 96 | 526 | 508 | 62 | 395 | 43 |
| 550 | 507 | 430 | 77 | 73 | 110 | 545 | 521 | 62 | 395 | 43 |
All measurements in millimetres unless marked (°) for angles.
