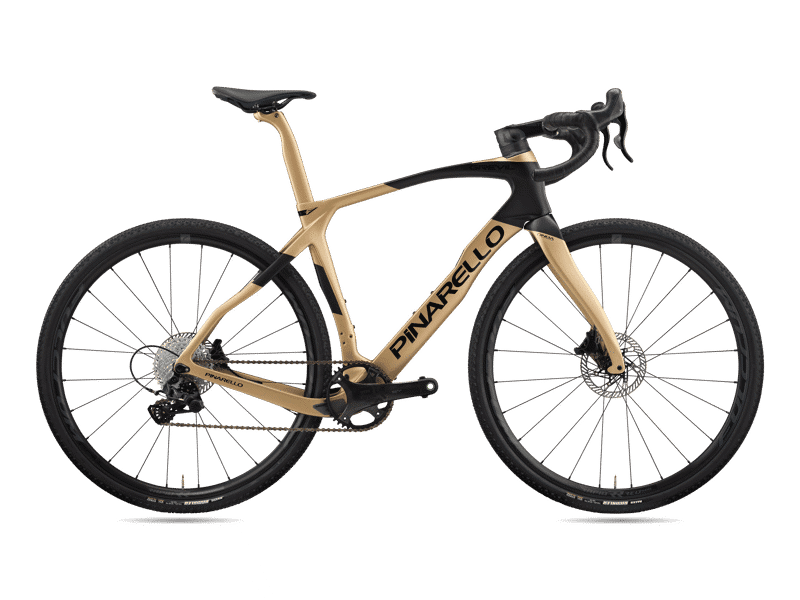

2023 Pinarello Grevil F geometry
Full frame geometry for the 2023 Pinarello Grevil F, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 470 | 548.4 | 360.1 | 74.5 | 70.3 | 120 | 520 | 72 | 422 | 55 |
| 500 | 563.5 | 367.8 | 74 | 70.5 | 135 | 535 | 72 | 422 | 55 |
| 530 | 578.4 | 374.4 | 73.8 | 70.8 | 155 | 547 | 67 | 422 | 55 |
| 550 | 593.5 | 382 | 73.5 | 71.8 | 165 | 560 | 67 | 425 | 50 |
| 575 | 608.8 | 389.7 | 73 | 72 | 180 | 577 | 67 | 425 | 50 |
| 600 | 628.8 | 398.5 | 72.5 | 72.3 | 200 | 597 | 67 | 425 | 50 |
All measurements in millimetres unless marked (°) for angles.
